CONTROLLER DETAILS

LED Status Indicators

LED Color

Description

Yellow

Heat Mode – Standby or active heat mode

Yellow – Flashing

Emergency Heat Mode

Blue

Cool Mode – Standby or active heat mode

Green

Defrost Mode

Green – Flashing

Time-Temp Defrost Initiation On

Red

Volatile Lockout

Red – Flashing

No Volatile Lockout - a fault condition exists (Auto-Restart,

Anti-Short Cycle or operation with fault)

Table 8: LED Status Indicators

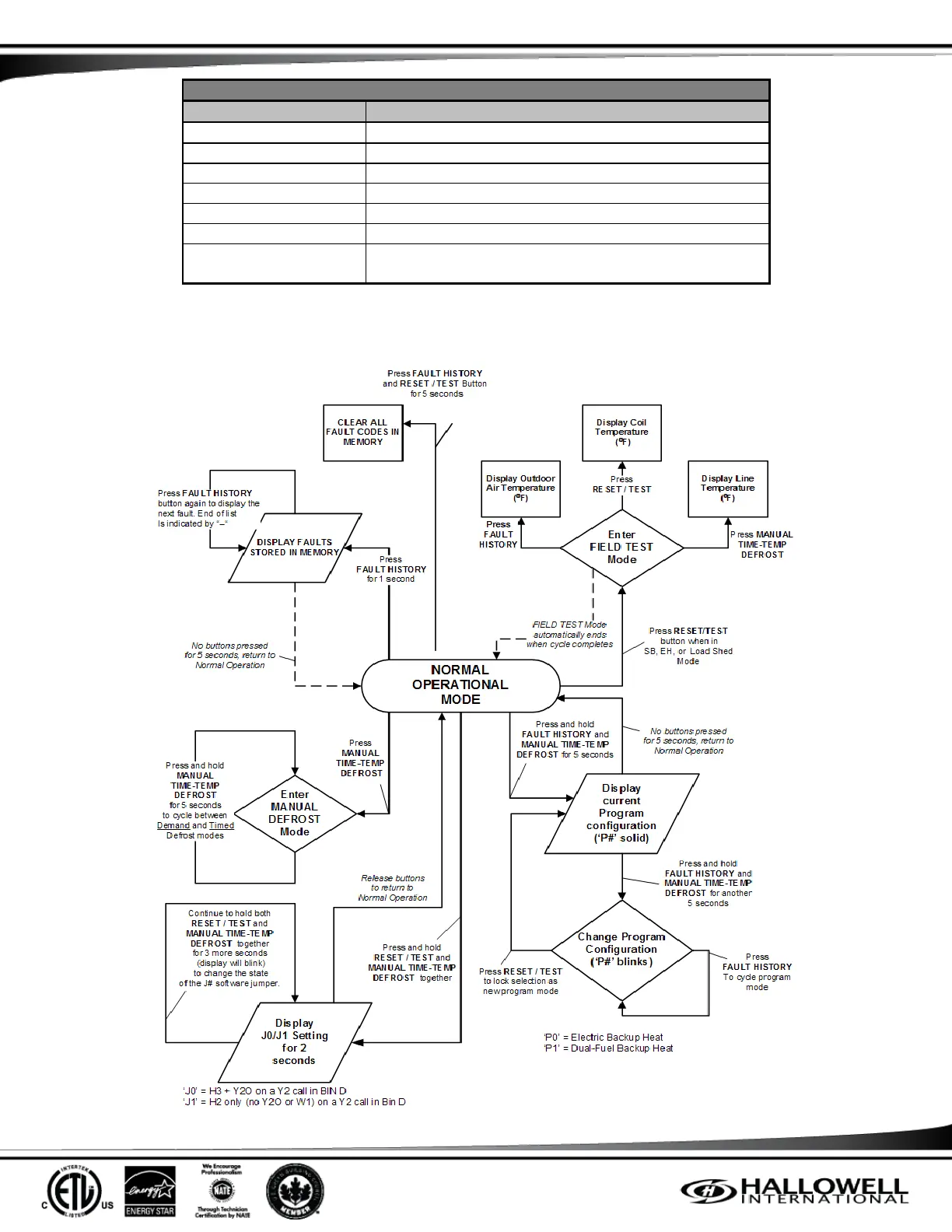

Figure 4 – Control Operation Flow Chart
