APPENDIX D – ACADIA OUTDOOR UNIT MOUNTING
54

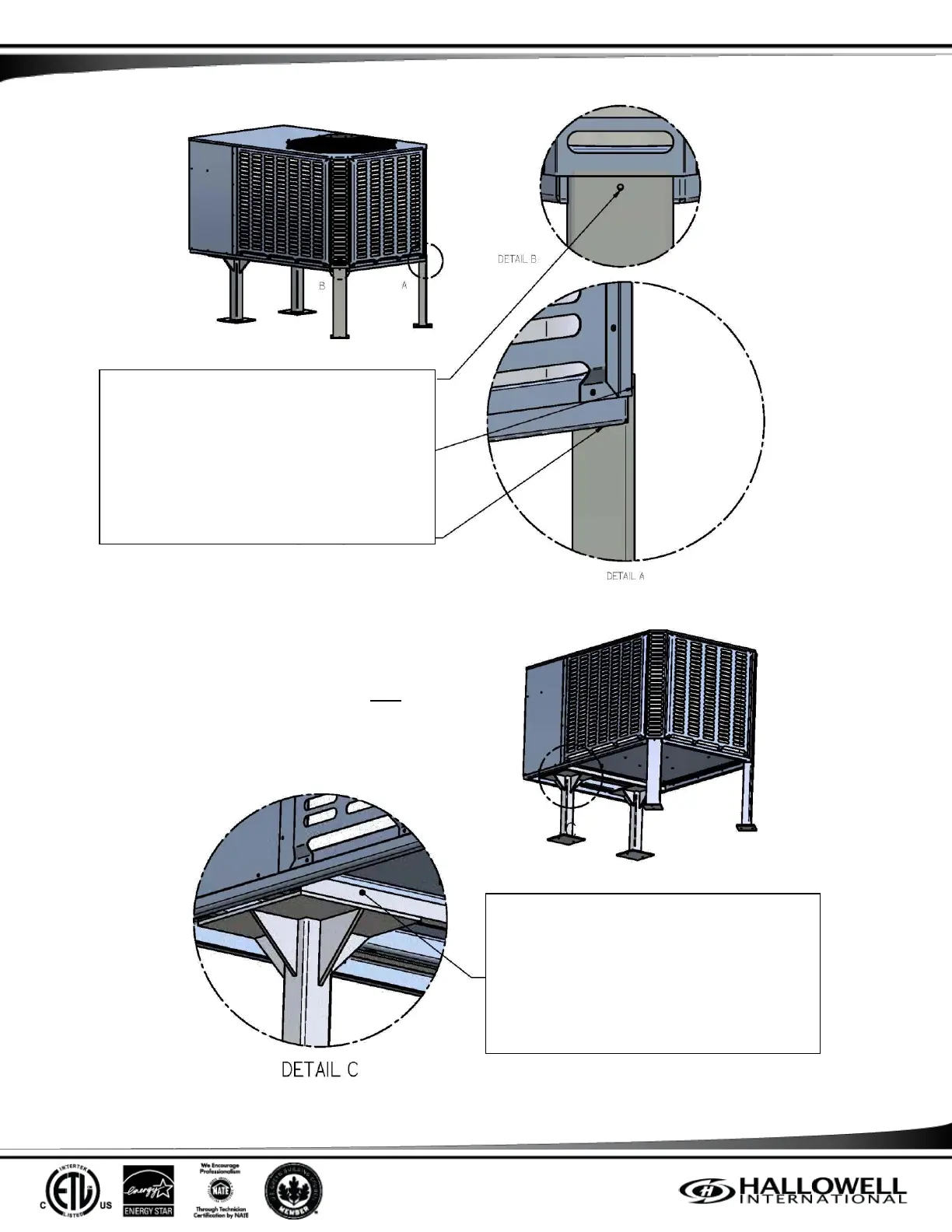

Figure 16 – Northern Climate Snow Stands
The rear legs cradle the compressor frame
rails under the unit. Securing to the unit is
not necessary. Securing ALL legs to the pad
is necessary to prevent the legs from
The front legs attach to the 45 degree
corners of the coil end. These need to be
drilled and secured using screws or bolts.
Note: The hardware is only for securing the
leg to the unit. It should not be supporting
any weight. The legs support all the weight.
All legs need to be secured to the pad they
are placed on. The legs may “walk” if this is
not done and damage to the piping, unit,
building, and/or people may occur.
Installation mishaps such as this are NOT
covered by Hallowell International’s
warranty.
