APPENDIX B – WIRING DIAGRAMS

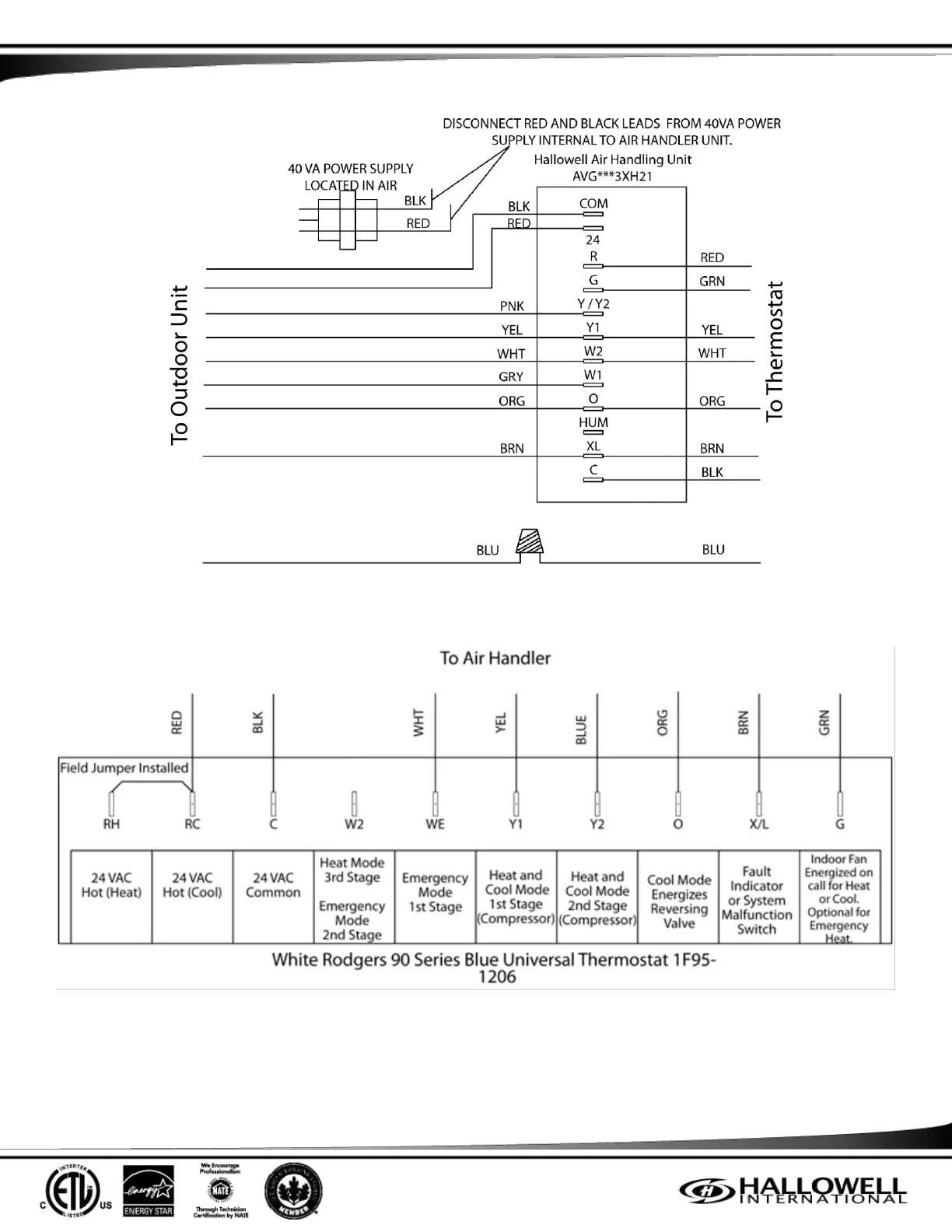

Figure 10 – Factory Supplied Air Hander Control Board Wiring

Figure 11 – Hallowell Matched Thermostat Wiring
