APPENDIX B – WIRING DIAGRAMS
48

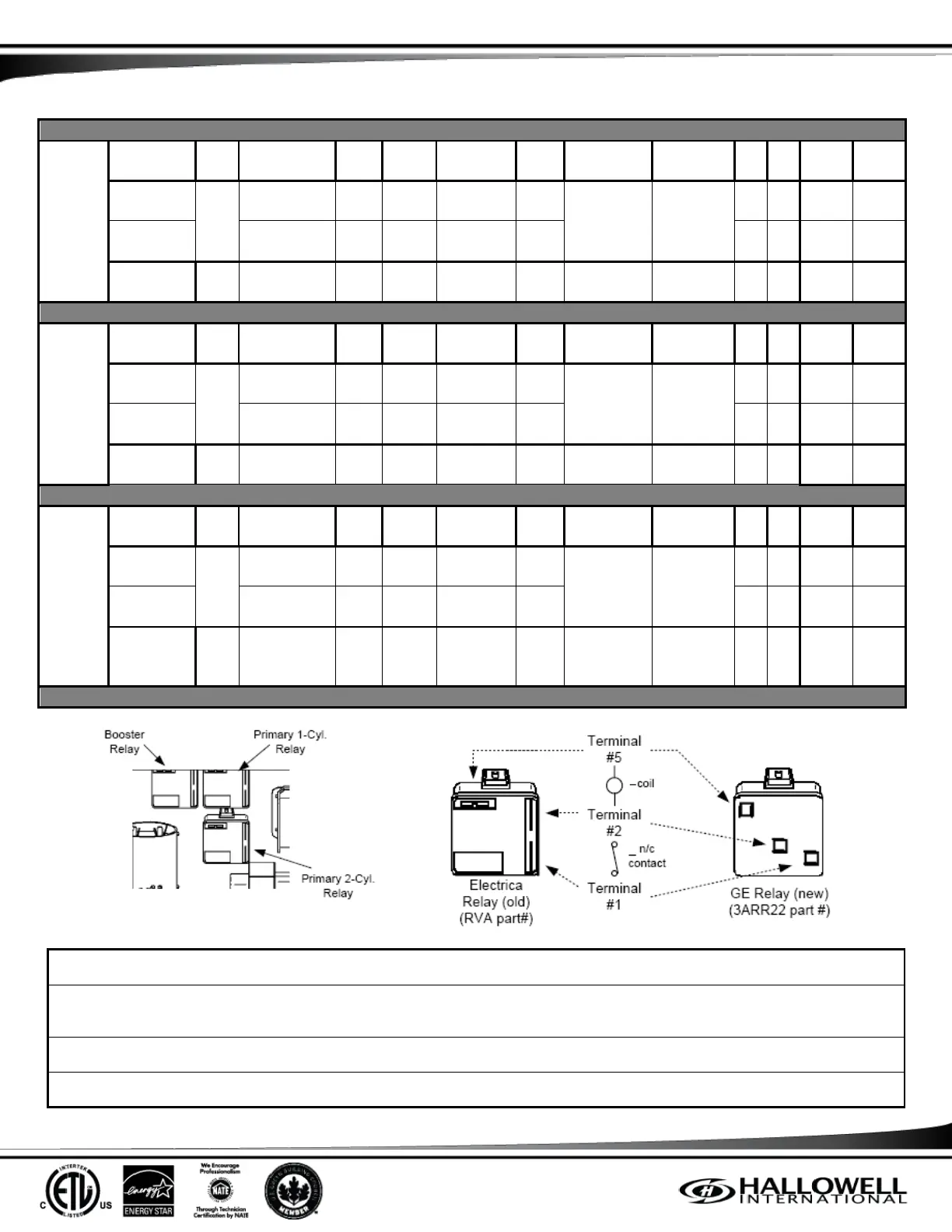

Figure 14 – Compressor Starting Components
Acadia Starting Components
(1) The Start Capacitor on the T81J195CBC was updated per a change of Bristol specifications to the 243-292 mfd @ 330 VAC in January, 2010.
Systems prior to the specifaction change used a 216-259 mfd @ 330 VAC start capacitor and is still considered usable equipment.
(2) The 1 cylinder Relay on the T81J285CBC was updated per a change of Bristol specifactions to the 3ARR3J8R3 in January, 2010. The 3ARR22J8R3
has the same Pick-up and Drop-out voltages of the 3ARR3J8R3, but uses 50-amp rated contacts instead. Either relay is acceptable for use. Systems
prior to the specifaction change used the 3ARR22J3S3 and is still considered usable equipment.
(3) The 2 cylinder Relay on the T81J285CBC was updated per a change of Bristol specifactions to the 3ARR22J10C3 in January, 2010. Systems prior
to the specifaction change used the 3ARRJ24C3 relay and is still considered usable equipment.
(4) The Start Capacitor on the H20J443ABC was updated per a change of Bristol specifications to the 216-259 mfd @ 330 VAC in April, 2009.
Systems prior to the specification change used a 189-227 mfd @ 330 VAC and is still considered usable equipment.
