Hamlet 300 User Manual

Wireless Access Point HNW300APN
User Manual 8
2.2 Connectors
The below table shows the function of each connector and switch of the device.
CONNECTOR DESCRIPTION
ANTENNA ANTENNA
ON/OFF
SWITCH
Power on/off the device
POWER Connects to the supplied power cable
LAN 4/3/2/1 Connects the device via Ethernet to up to four PCs on your LAN
WAN Connects the device via Ethernet to xDSL / Cable Modem
WLAN Press this button for at least two full second to turn off/on wireless signals
WPS Press this button for at least three full seconds and the WPS LED will flash to start WPS.

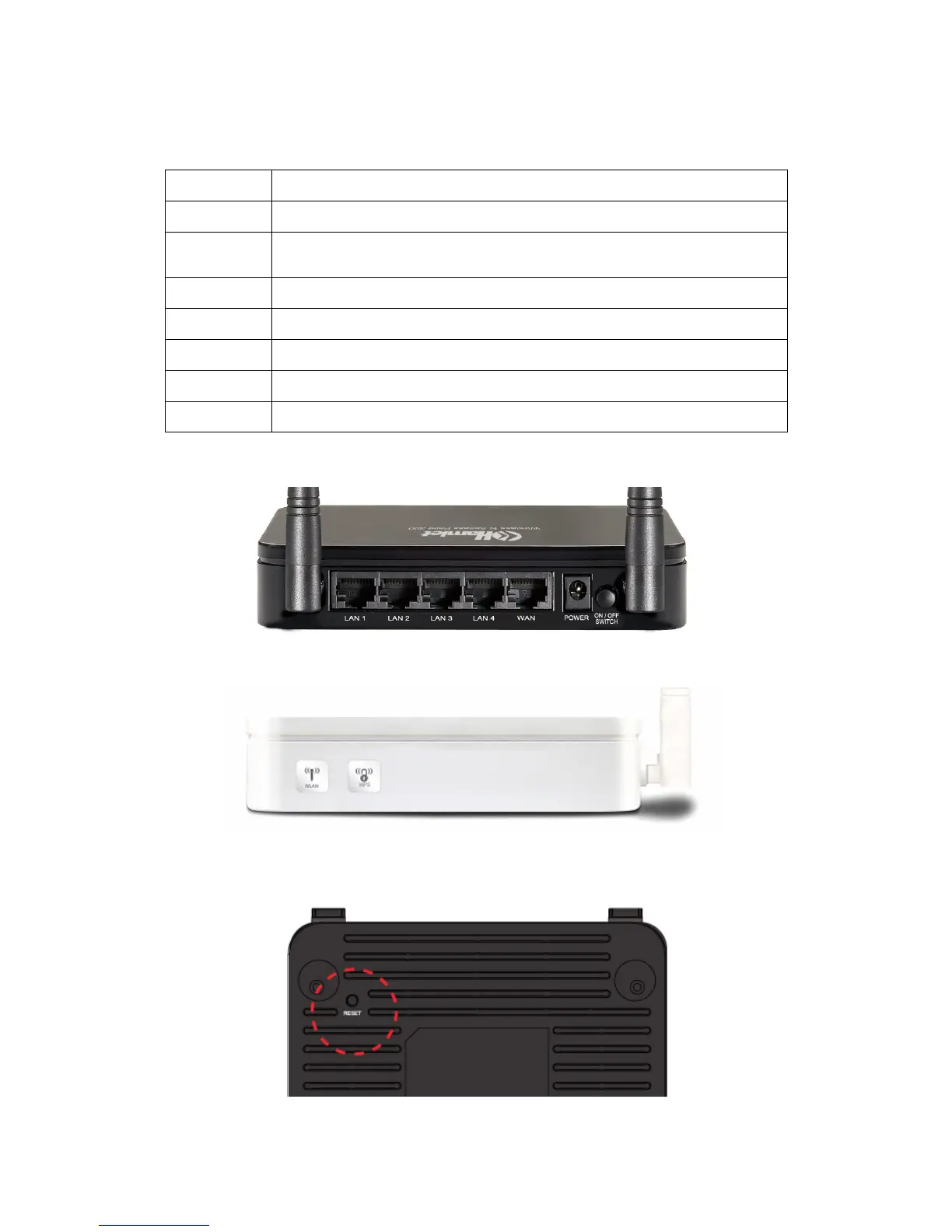

Figure1. Rear View of the Wireless ADSL2+ Router
Figure2. WPS and WLAN button
Figure3. RESET button

Hamlet 300 Specifications

General

Brand	Hamlet
Model	300
Category	Wireless Access Point
Language	English
