Wireless Access Point HNW300APN
User Manual 9
3. Installation & Setup
Follow each step carefully and only go to the next step once you have completed the previous one.
Note: Be sure that you are well insulated from any power source to avoid electricity shock.
Note: Use only the manufacturer-approved power supply that shipped with the Access point.
1. Connect the power to the Access Point by plugging the power supply into an appropriate
electrical outlet.
2. If the Power LED is off, refer to “Troubleshooting” for information.

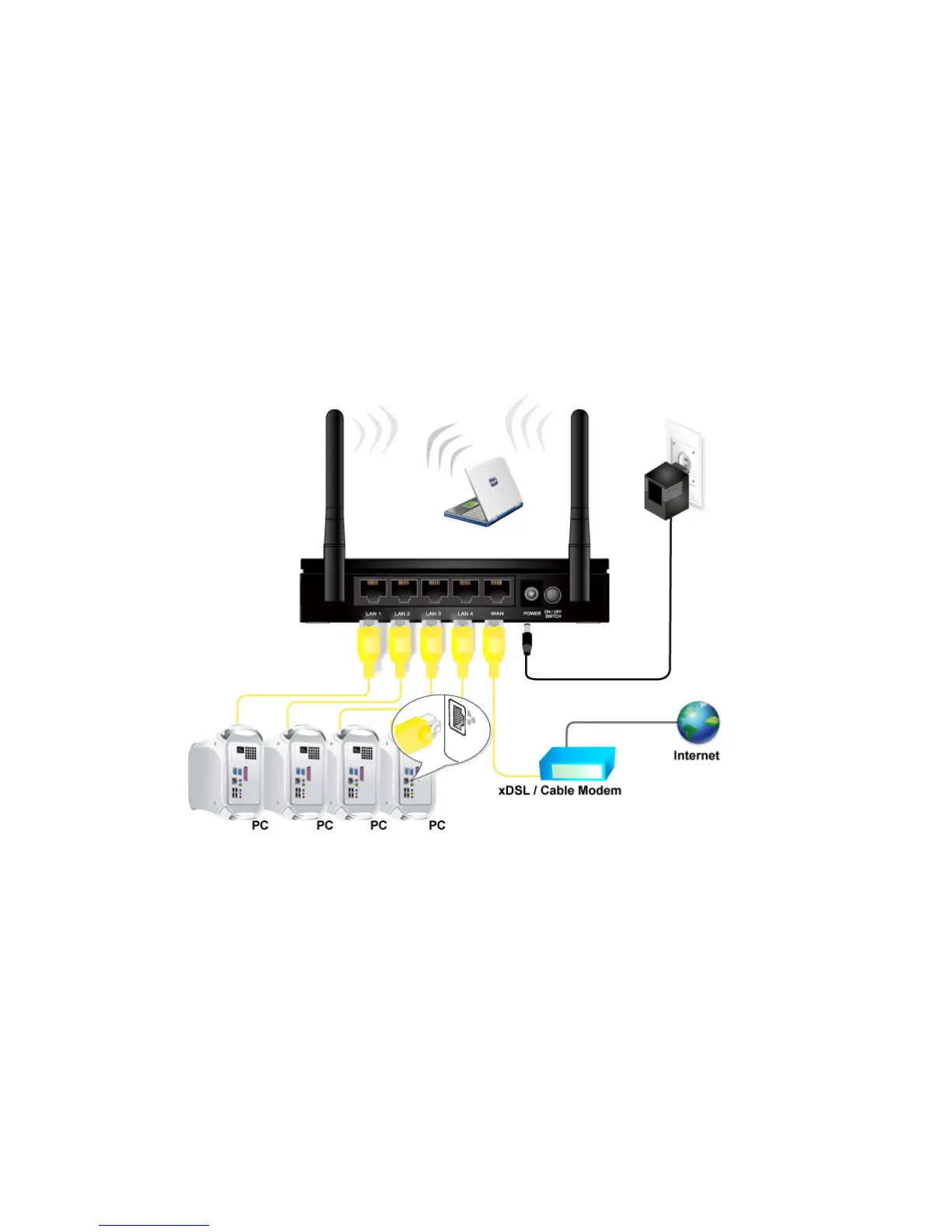

3.1 Connection of Access Point
1. Connect the supplied RJ45 Ethernet cable from your PC's Ethernet port to any of the 4 802.11n
Wireless Access Point's WAN Ports.
2. Connect the supplied RJ45 Ethernet cable from your xDSL/Cable Modem's Ethernet port to
802.11n Access Point's WAN Port.
3. Connect the power adapter to the power inlet “Power” of the 802.11n Access Point and turn the
power switch “ON/OFF Switch” of your 802.11n Access Point on.
