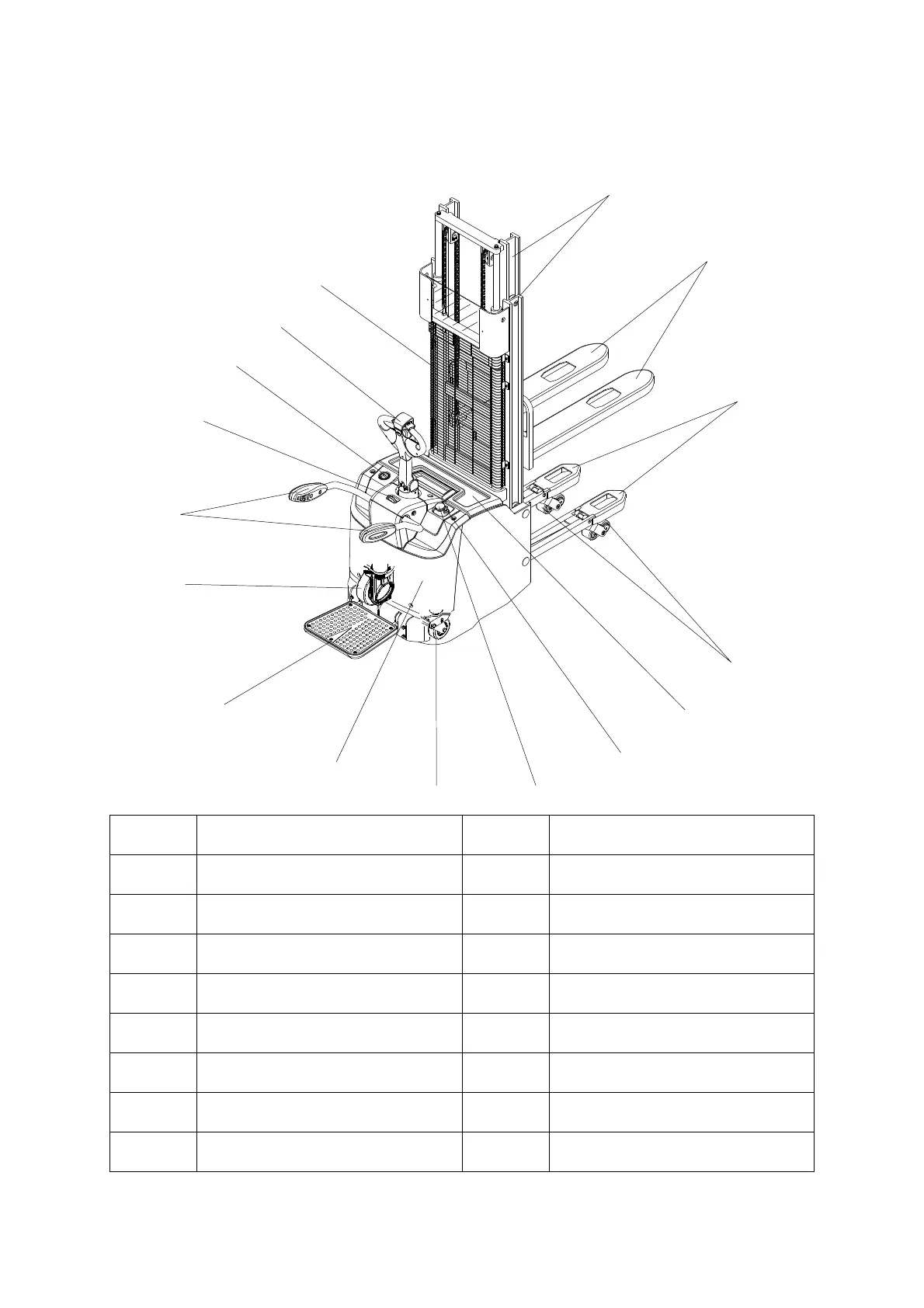

2.2 Main parts and Functional Description
2.2.1 Main part introduction
16
1
2
3
4
5
6
7
8 9
10
11
12
13
14
15
Item Component Item Component
1 Tiller 9 Emergency Disconnect switch
2
Meter
10 Key switch
3 Lock switch 11 Battery panel
4
Safety side arms
12 Load wheels
5 Drive wheel 13 Wheel arm
6 Folding operator platform 14 Forks
7 Rear panel assy 15 Mast
8 Castor wheel 16 Mast shield
