HANGCHA A Series - Brake Installment

84

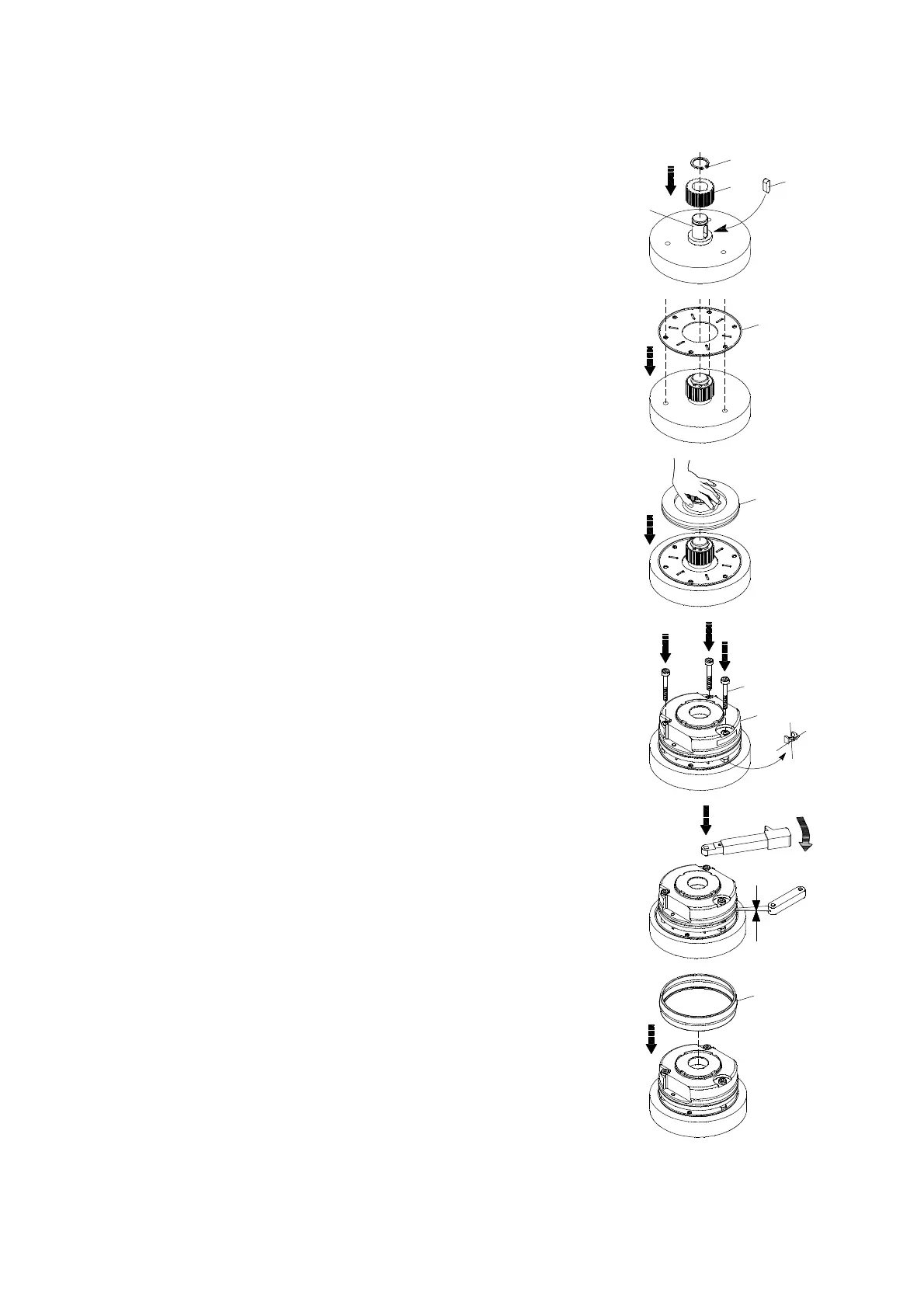

1.3.2 Brake installment
– Place flat ke
y(12) to the key groove of motor shaft(9), press
shaft sleeve(4) to the shaft(9), and fix with inner snap
ring(13).
– Place friction disc(5) on the end face of motor.
– Cover friction brake disc(3) to the shaft sleeve.
– Install stator module(2) and
three mounting screws(1). Note:
remove three fixed rubber gasket on the stator module(2)
before install.
–
Screw down three mounting screws(1) with spanner, and
check air gap ”Z”.
– Put dust cover（6）.
– Connect brake wiring.
4
12
5
3
2
1
6
13
9
Z
