5.4 Changing the battery
Procedure:
– Park the truck securely.
– Open the battery panel (11).
– Disconnect the battery connector (53) from the
truck connector (52). Place the battery cable on the
tray so that it cannot be severed when the battery
is pulled out.

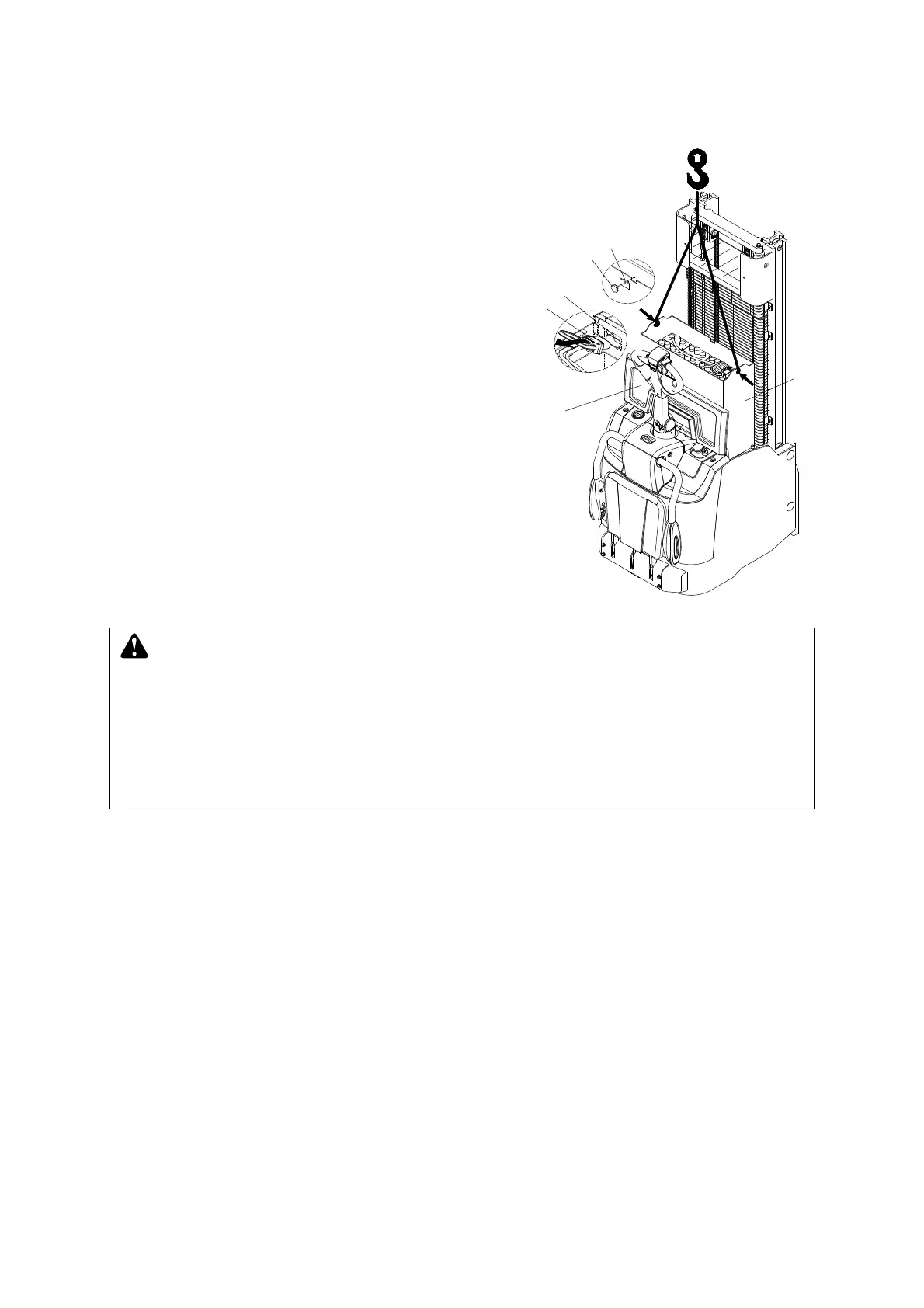

– Hang the hoisting tool to the two hoisting hole of
the battery tank (57) and fix it.
– The crane lifting gear must exert a vertical pull. Pull
the battery up out of the container.
Installation is the reverse order. When reinstalling the
battery, note the proper installation position and make
sure the battery is connected correctly. Place the
battery cable on the tray so that it cannot be severed
when the battery is inserted.
57
55
56
53
52
11
WARNING
Battery box is very heavy, be careful to avoid damage.
Make sure the lifting capacity of the crane is larger than battery weight.
Disposal to the waste battery should accord with local environment regulation.
When replacing the battery, ensure that the battery of the same specification,
dimension and weight is fitted.
