7.6 Lifting load
Lift one pallet
Procedure:
－ Drive the truck carefully up to the pallet.
－ Slowly insert the forks into the pallet until the fork shank touches the pallet. The load unit must
not extend by more than 50mm beyond the fork tips.
－ Press the “Raise load handler” button (21) until you reach the desired lift height. The lift speed
can be infinitely controlled via the movement of the button.
The load unit is raised.
Lift two pallets
Procedure:
－ Drive the truck carefully up to the pallet.
－ Slowly insert the forks into the first pallet until the fork shank touches the pallet. The load unit
must not extend by more than 50mm beyond the fork tips.
－ Press the “Raise load handler” button (21) until you reach the desired lift height. The lift speed
can be infinitely controlled via the movement of the button.
－ Slowly insert the wheel arms into the second pallet until the fork shank touches the pallet. The
load unit must not extend by more than 50mm beyond the fork tips.
－ Press the “Wheel arm lift” button (23) .The wheel arms raise.
The loads is raised.

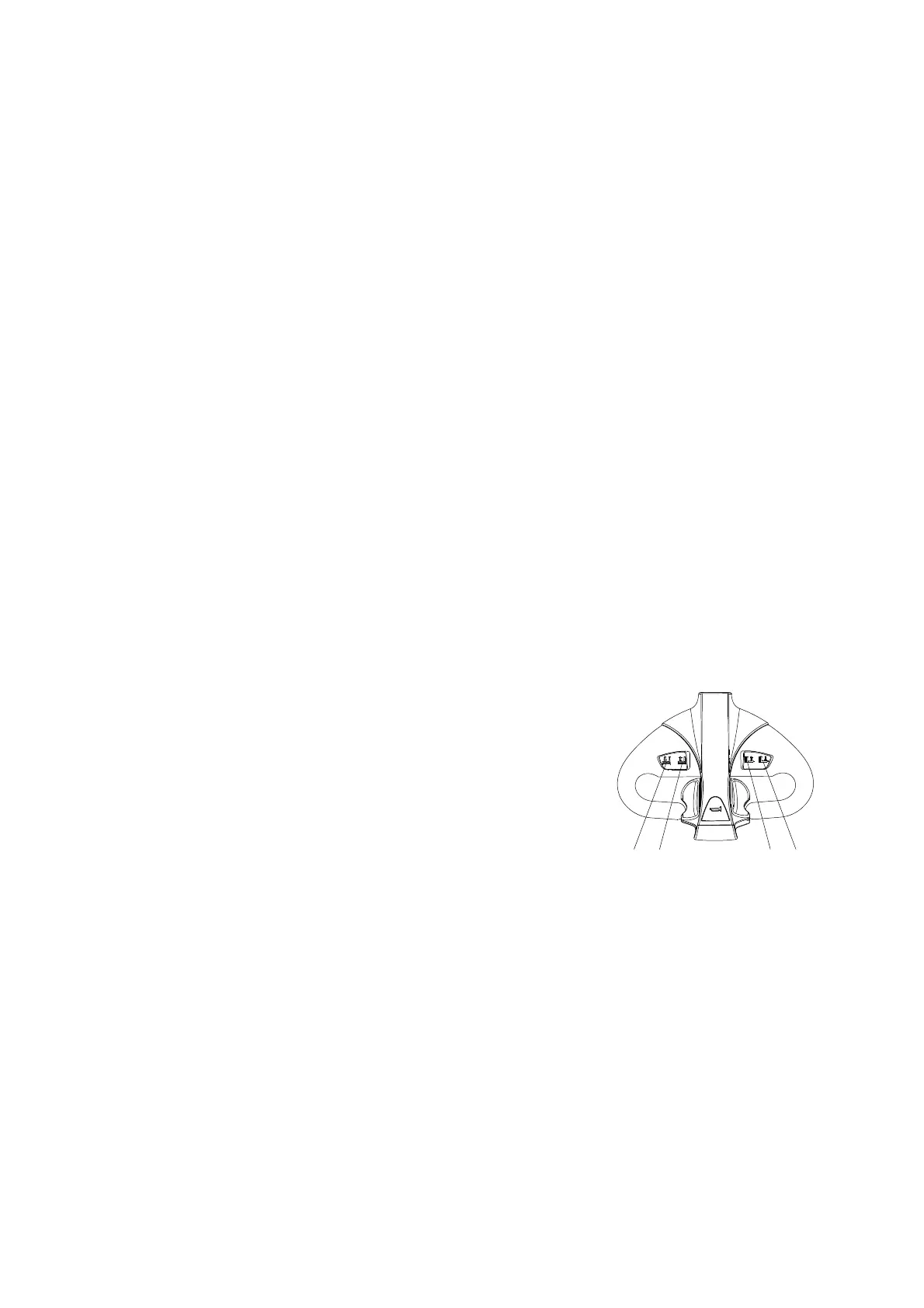

22 21 23 24
