Battery State of charge
The battery's State of Charge indication is
integrated in the LCD display; it is shown by
ten notches. Each notch represent the 10% of
the battery charge. As the battery becomes
discharged, the notches turn off progressively,
one after the other, in proportion to the value of
the residual battery charge. This value, sent to
the MDI-CAN by the controller via CAN-BUS,
is displayed in the Tester Menu of the Zapi
Console connected to the controller. When
BATTERY LOW alarm appears on the
controller, the battery symbol which is under
the notches blinks.

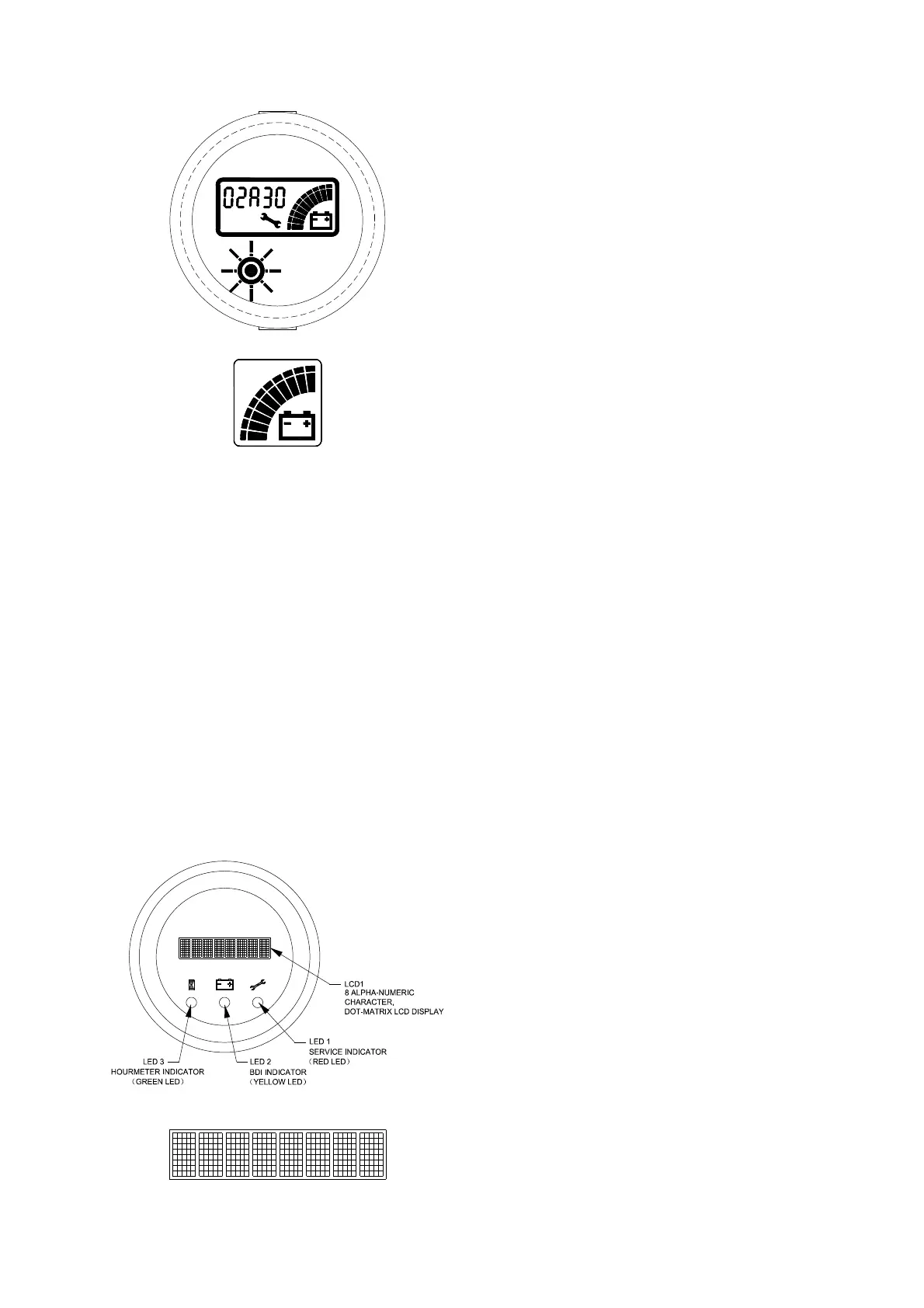

Instrument [2]
Dot-matrix LCD display
The display screen is 8 alphanumeric
characters, dot-matrix LCD liquid crystal
display, can display vehicles fault code, battery
soc and total running time.
Vehicles when the normal operation of the
display shows the battery remaining power.
Service indicator(red LED)
When the controller to detect fault information,
the red LED indicator light flashing, at the
same time LCD display shows two digits of the
fault code.When there are multiple fault fault
code alternates between interval of 2
seconds.Fault code corresponding fault
information to view in this paper, the fault code
table.
BDI indicator(yellow LED)
When battery remaining power less than 20%,
the yellow LED indicator lights flashing,
warned "depleted", at the same time LCD
display shows "20%" for 1 seconds after into
"Low BDI".
When the yellow LED indicator lights flashing,
vehicle lifting by automatic locking function,
running speed is reduced.At this time should
be immediately available for vehicles
recharged.
Hourmeter indicator(green LED)
Said when the green LED light is normally on
the timer is timing, the smallest unit of time for
0.1 hours.
Every time when starting the vehicle LCD
screen will display the vehicle's total run time,
this time is for regular maintenance on the
basis of the vehicle.
