LOGGING
10. LOGGING
HI83749 has a log space for up to 200 records. With each measurement, the date, time and tag ID
is stored. In this way, each record is fully characterized and can be easily analyzed when downloading
data on the PC application (HI92000).
The log function is active after a valid measurement is obtained (no errors).

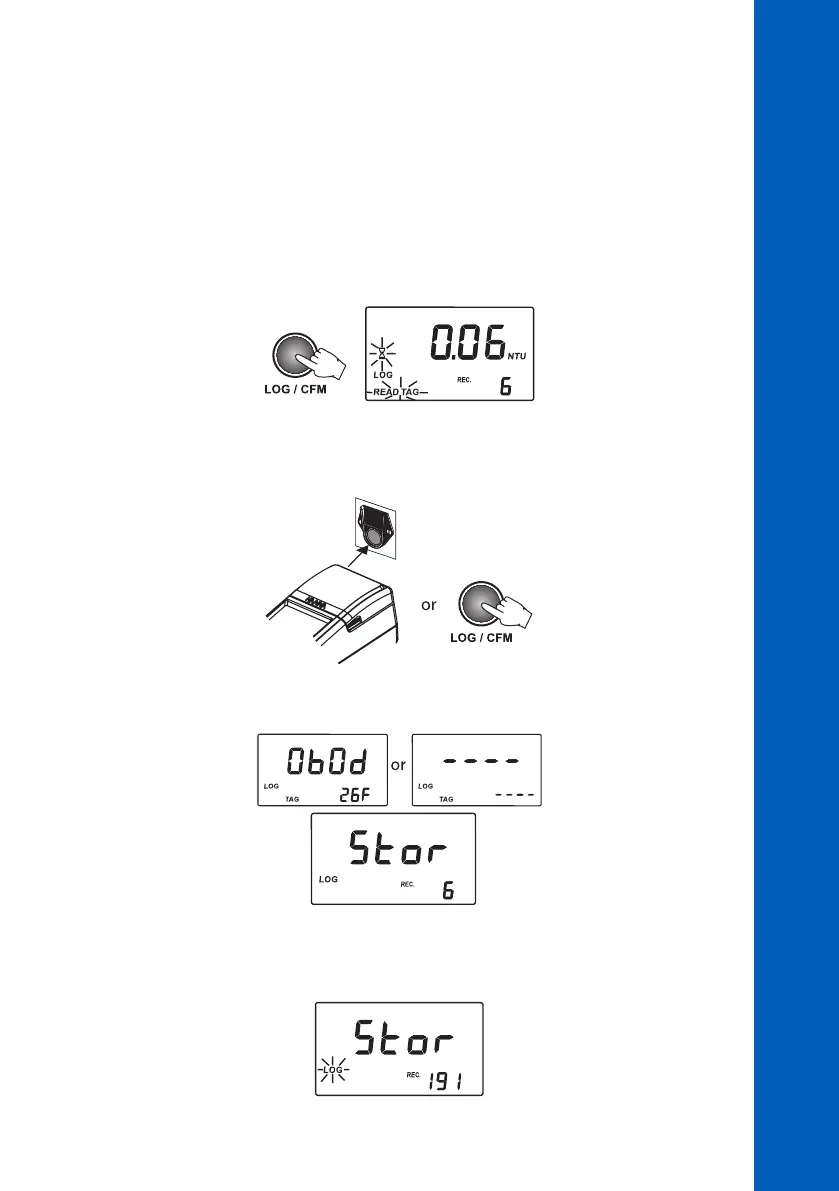

• To log a value, press LOG/CFM when the measurement result is displayed. The instrument asks
to READ TAG for identification of the sampling location. The location for the new record is also
displayed on the secondary LCD.
• To read the ID code for the sampling location identification, simply touch the iButton® tag
with the matching connector, located on the back of the instrument (see Connectors description).
Alternatively, press again LOG/CFM to store the record without the tag ID code.
• If the tag is successfully read, the instrument will beep once, displaying the unique hexadecimal code
of the tag, and store the data. After data is stored, the instrument returns to measurement mode.
Notes: If the tag is not read within 20 seconds, the logging procedure is canceled.
A measurement can be stored only once. Also an over range value can be stored.
• If there are less than ten available records, the “LOG” tag will blink while storing data.
