59
LOGGING

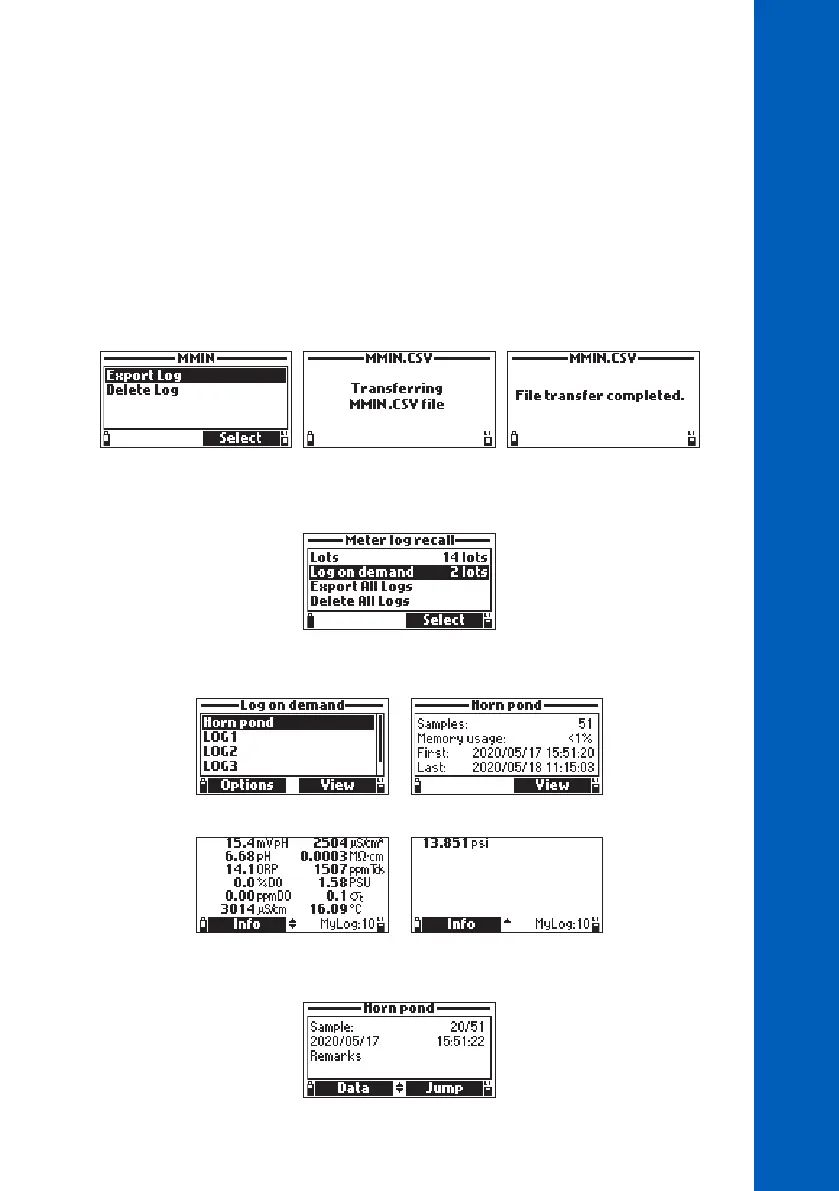

8. Use the arrow keys to move the cursor in the graph and highlight a sample. The sample data is
displayed below the graph.
9. Press ESC key to return to the parameter list.
Press Options (from the log list screen) to Export or Delete an individual Log.
Export selected log data to USB-C Flash Drive:
1. Insert a USB-C flash drive (or USB-A with cable adapter) into the USB-C connector located on
the top of meter. See section 13.5. PC CONNECTION for details.
2. Select Export Log. Connecting will be displayed followed by the file transfer information.
When all files have been transfered, “File transfer completed” message will be displayed.
Log On Demand
Select this option to view the log on demand lots and plot selected parameters.
1. Use the arrow keys to select the desired lot and then press View.
2. Press View to review the log data.
3. Press Info to see record information for the current sample: time and date, remark or serial number.
4. Press Data to return to the previous screen or Jump to select a different sample in the same lot.
When Jump is pressed, a text box appears to insert the desired sample number.
