HBM C6A - Force Conductor with Pressure Plates

13
C6A
A0638−2.3 en/de/fr HBM

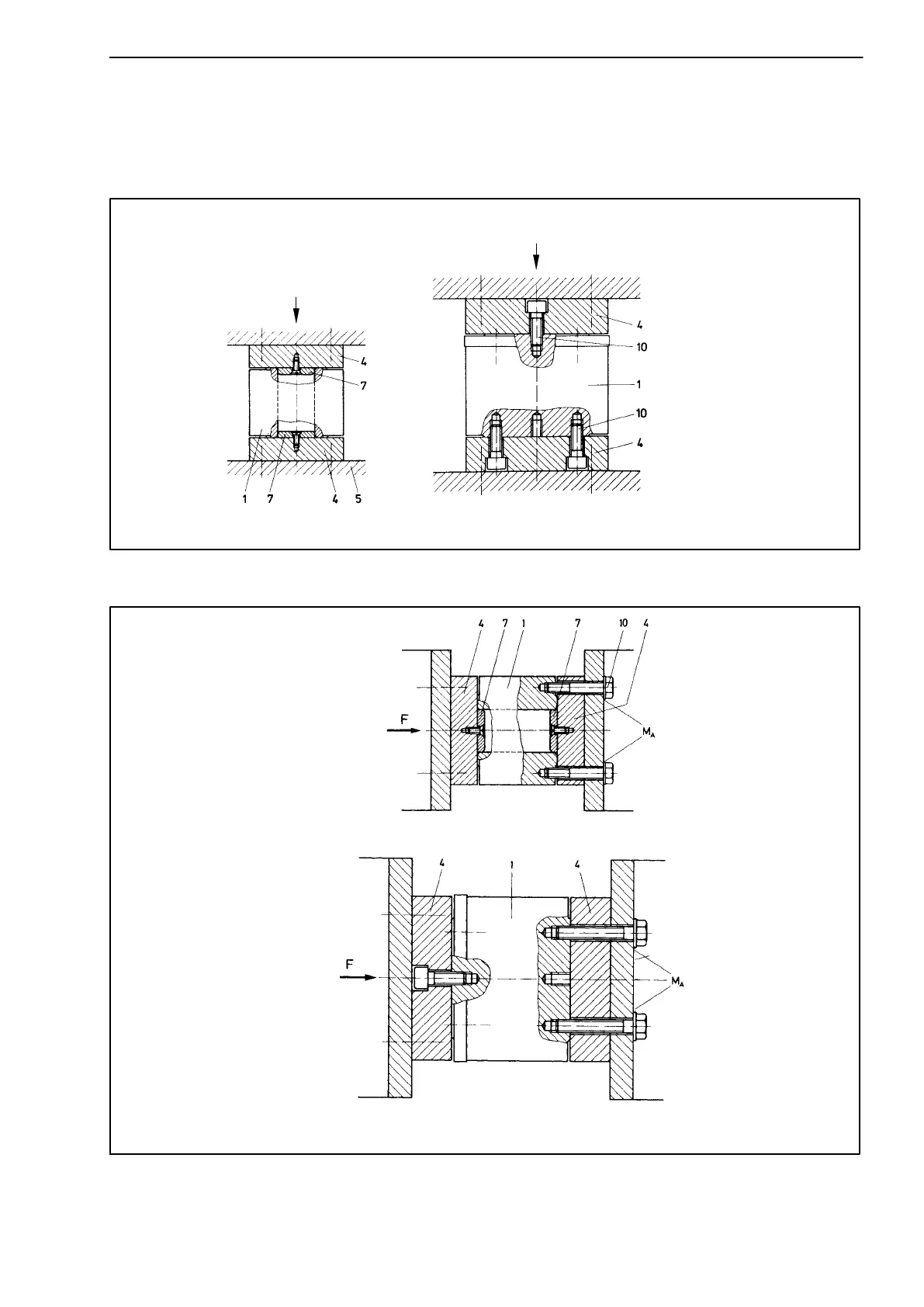

5.3.1 Force conductor with pressure plates
This type of installation (Abb. 5.1 and Abb. 5.2) is possible with a central force
conductor and if no transverse forces occur.
Nominal forces 0.2 − 2
MN
Nominal force 5 MN
F = direction of force; 1= transducer; 4= pressure plate; 5= substructure; 7= centering disc
F
F
Abb. 5.1: Direction of force vertical
Nominal forces 0.2 − 2 MN
Nominal force 5 MN
F = direction of force; 1= transducer; 4= pressure plate; 5= substructure; 7= centering disc; 10= fixing
bolts
Abb. 5.2: Direction of force horizontal
