HBM C6A - Structure and Mode of Operation; Measuring Element

C6A
8
A0638−2.3 en/de/frHBM
3 Structure and mode of operation
3.1 Measuring element
The measuring element is a rotation−symmetrical body made of hardened
steel (Abb. 3.1).
If there is a loading in an axial direction the measuring element is upset. The
resulting strain is detected by a strain gauge which is connected to a
Wheatstone bridge.
Correction and compensation resistors are placed in the transducer circuit in
order to remove unwanted influences on the zero signal and sensitivity.
Nominal forces 0.2 − 2 MN
Nominal force 5
MN
1 = measuring element; 2= enclosure; 3= strain gauge; 4= force−introduction surface;
5= base plate; F= direction of force
F
F

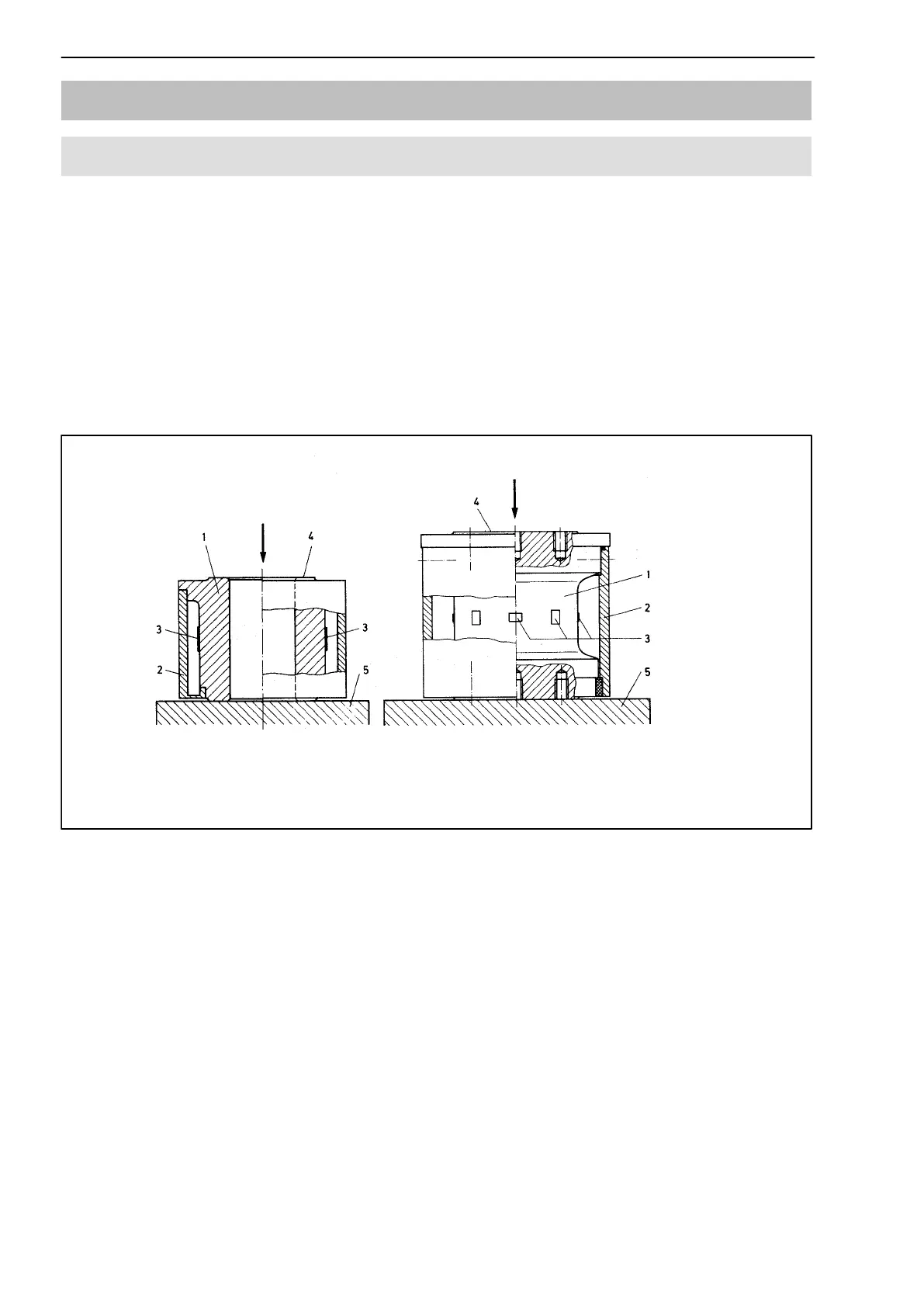

Abb. 3.1: Schematic drawing
