32
PME-MP55
HBM A0563-5.6 en
Group Parameter Meaning
CONDI-
TIONING
>0<kN
1)
Enter zero value. Zeroing effects both, the gross value and
the net value.
>0< set ? Trigger zero balance; set current measured value (physical
unit) to zero
>0< save Each time there is a zeroing procedure the zero value is
adopted into the EEPROM (service life 100.000 cycles)
>T< kN
1)
Input tare value. Taring affects the net value.
>T< set ? Trigger taring; net value becomes 0
>T<save Save tare value immediately after taring
Filter 0.05 Hz 1 Hz 20 Hz 500 Hz
0.1 Hz 2 Hz 50 Hz
0.2 Hz 5 Hz 100 Hz
0.5 Hz 10 Hz 200 Hz

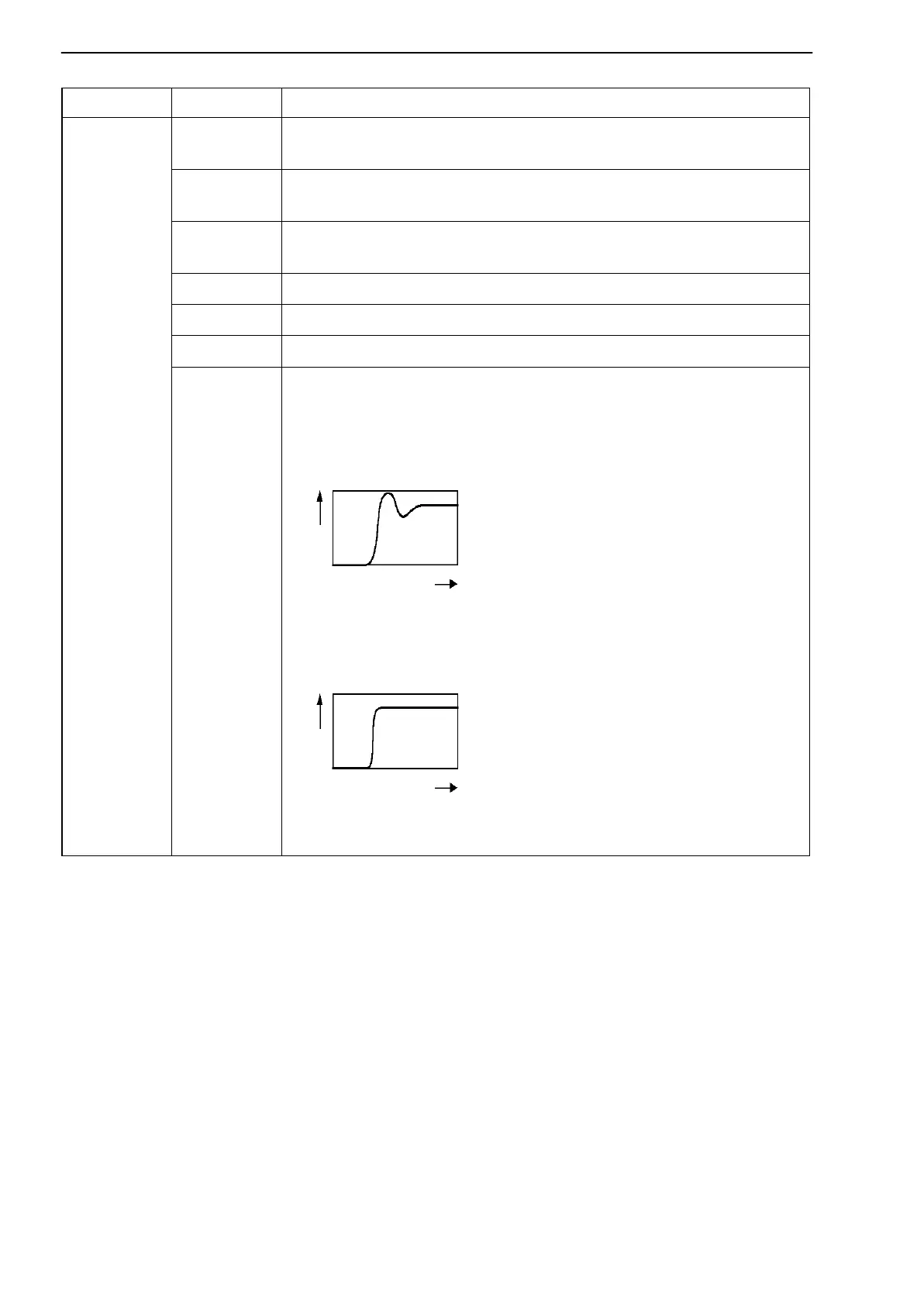

FiltChar
Step response
Best frequency response
(Butterworth)
Step response
Best course over time
(Bessel)
The diagram shows a linear amplitude re-
sponse which falls away steeply above the
cut-off frequency. There is an overshoot of
approx. 10 %.
The diagram shows a step response with very
little (<1 %) or no overshoot. The amplitude
response falls away less steeply.
Time
Time
1
) Depending on the unit chosen
