33
PME-MP55
HBMA0563-5.6 en
Group Parameter Meaning
ANALOG-
OUTPUT
SourceUa The gross or net value and the peak value can be chosen as
the source for the analogue signal.
Mode Ua Use DIP switches S11 and S5 to define the analogue output
signal mode. The following options are possible:
"10 V, "20 mA, 4...20 mA
Zero kN
1)
Zero V
EndV kN
1)
EndV V
Physical unit
V
0
Zero
kN
Zero V
EndV
kN
EndV V
Information on scaling

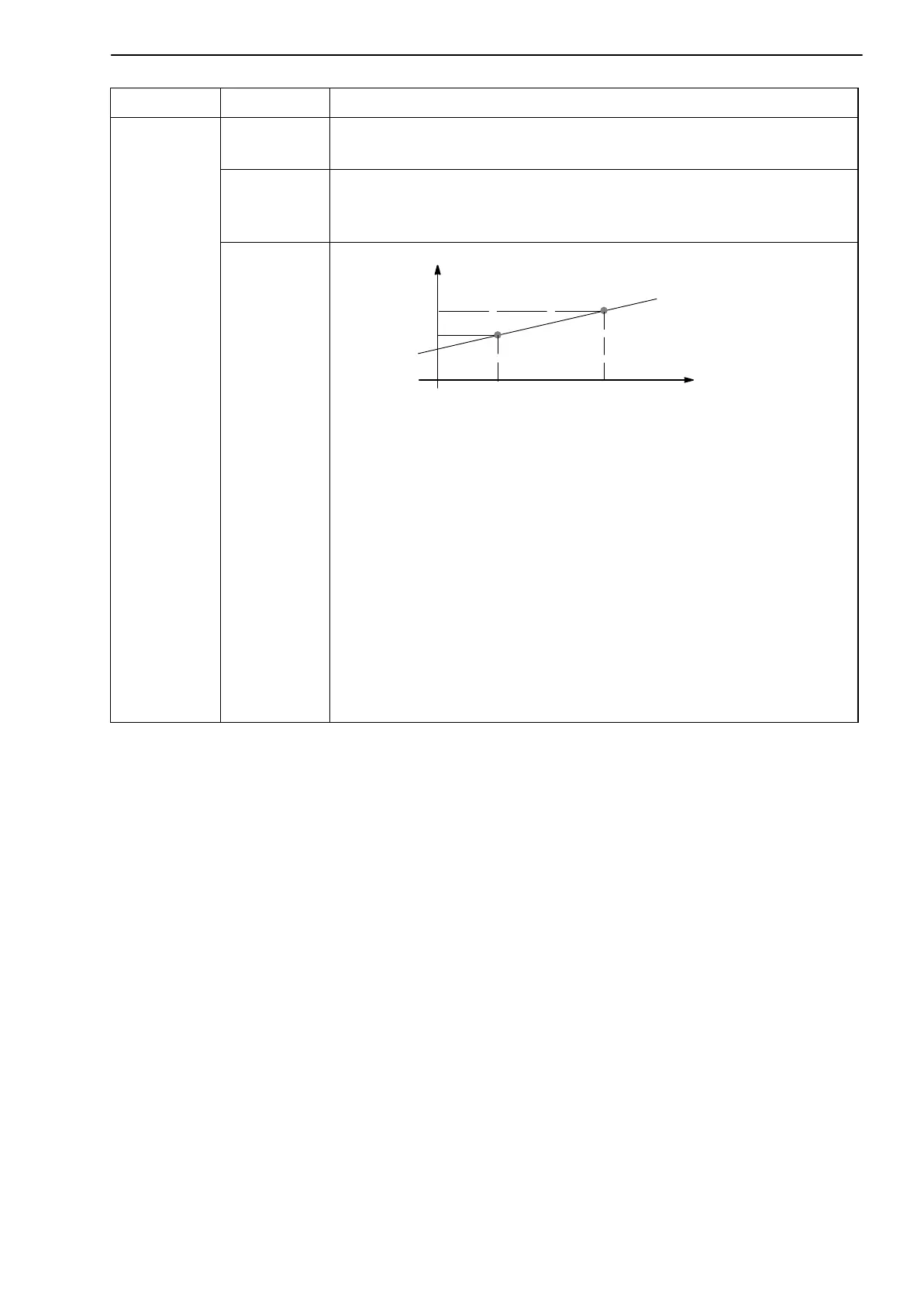

Output characteristics:
The scale factor for the analogue output is derived from the
input and output characteristics. If the span that has been set
up corresponds to the measurement range in mV/V, the
minimum output voltage that can be set up is 0.17 V. If the
settings cause the respective limits to be exceeded,
”Analogue scaling error” is reported (see page 58).
Scale range min. for analogue output: 0.17 V at 100 % of amplifier input
range
Scale range max. for analogue output: 10 V at 3.67 % of amplifier input
range
1
) Depending on the unit chosen
