Group Parameter Meaning
LIMIT VAL.
1...4
Source You can choose from the following as the source for the limit
value signal: Gross, Net, Peak value Max/Min / Peak-to-peak
SwtchDir
Value
Hyst
Hyst
Value
Over limit
Below limit
Hyst
24 V
0 V
24 V
0 V
Limit1, ON
Limit2, ON
Limit1 ON
Limit2 ON

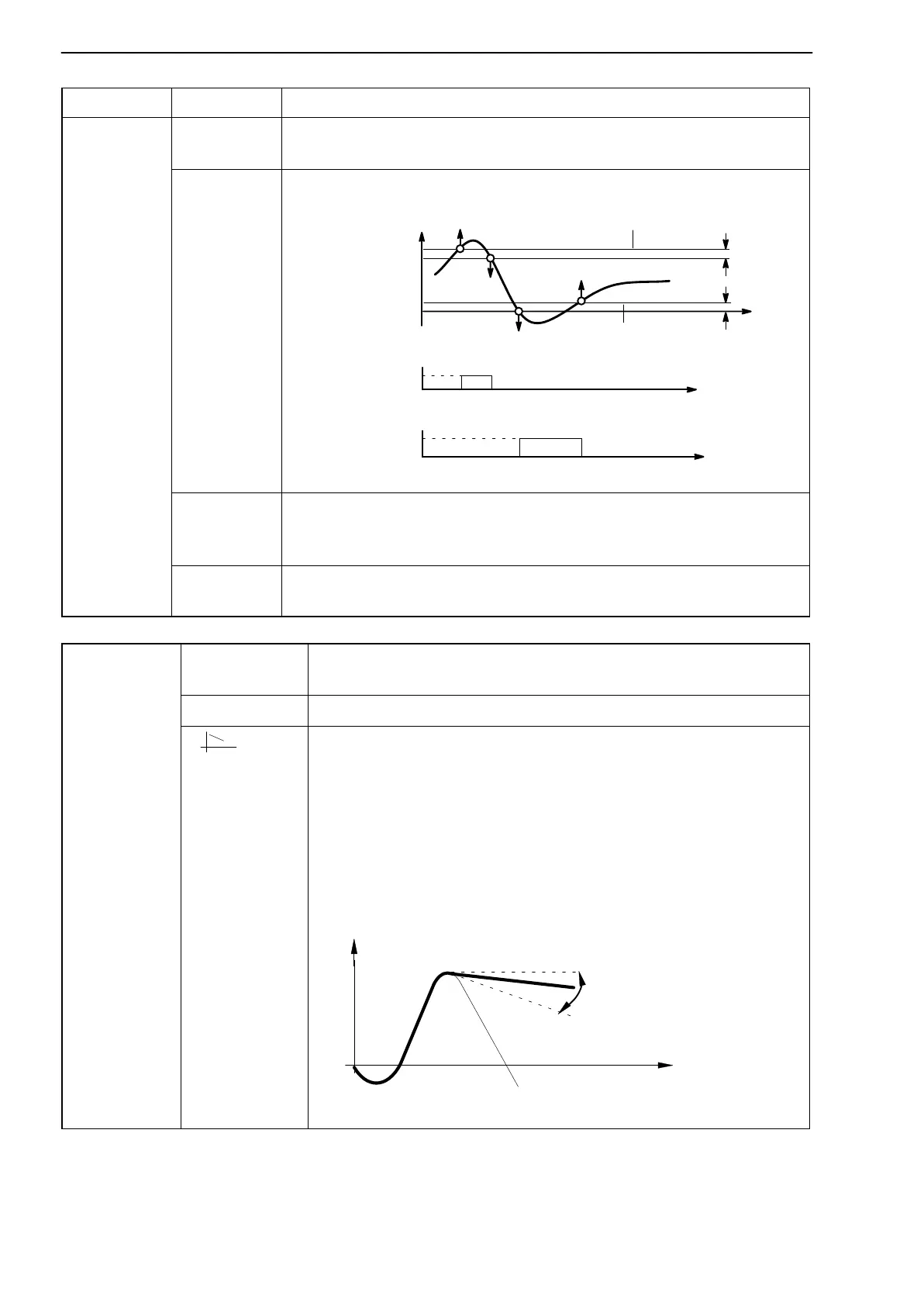

Functions and parameters of limit values
OFF
OFF
Value
On Del ms Starting delay; in the event of exceeding a limit value level,
the change only takes effect after the delay time (On Del) at
the output.
Off Del
ms
Cut-off delay, as for On Del
PEAK
STORE
*)
InputMin/Max The following can be chosen as the source for the peak
value: Gross, Net,
ClearPkV The peak value can be cleared.
kG/s
Discharge rate of envelope function (in physical units/sec)
for both peak value stores.
Peak value stores can also be used to display the
envelope function. The envelope function is suitable for
measuring amplitude-modulated vibration. The discharge
rate of the envelope function (i.e. the decay time of the
discharge function) defines how quickly the current value is
discharged from the peak store.
Discharge rate=0 V/s
Discharge rate=1 V/s
V
i
, V
o
t
*) See also following page (Remotes)
