5 Installation
5.1 Mounting
• Compare card type (refer to label on rear connector) with part list / diagram.
• The card generally could be mounted in any direction. However, it is recommended to choose a vertical orientation for
better convection cooling. Also, this orientation will be obviously better suited for adjusting parameters or monitoring
display values via the keypad and display (applicable for DAC-44(A) versions only).
• The amplifier card should be mounted in a shielded environment (e.g. control cabinet).
• The amplifier card module has to be mounted either in a rack according to the 19” rack standards (EIA 310-D, IEC
60297 und DIN 41494 SC48D).
it is also possible to install the card either in an appropriate card holder or HCS own universal rack:

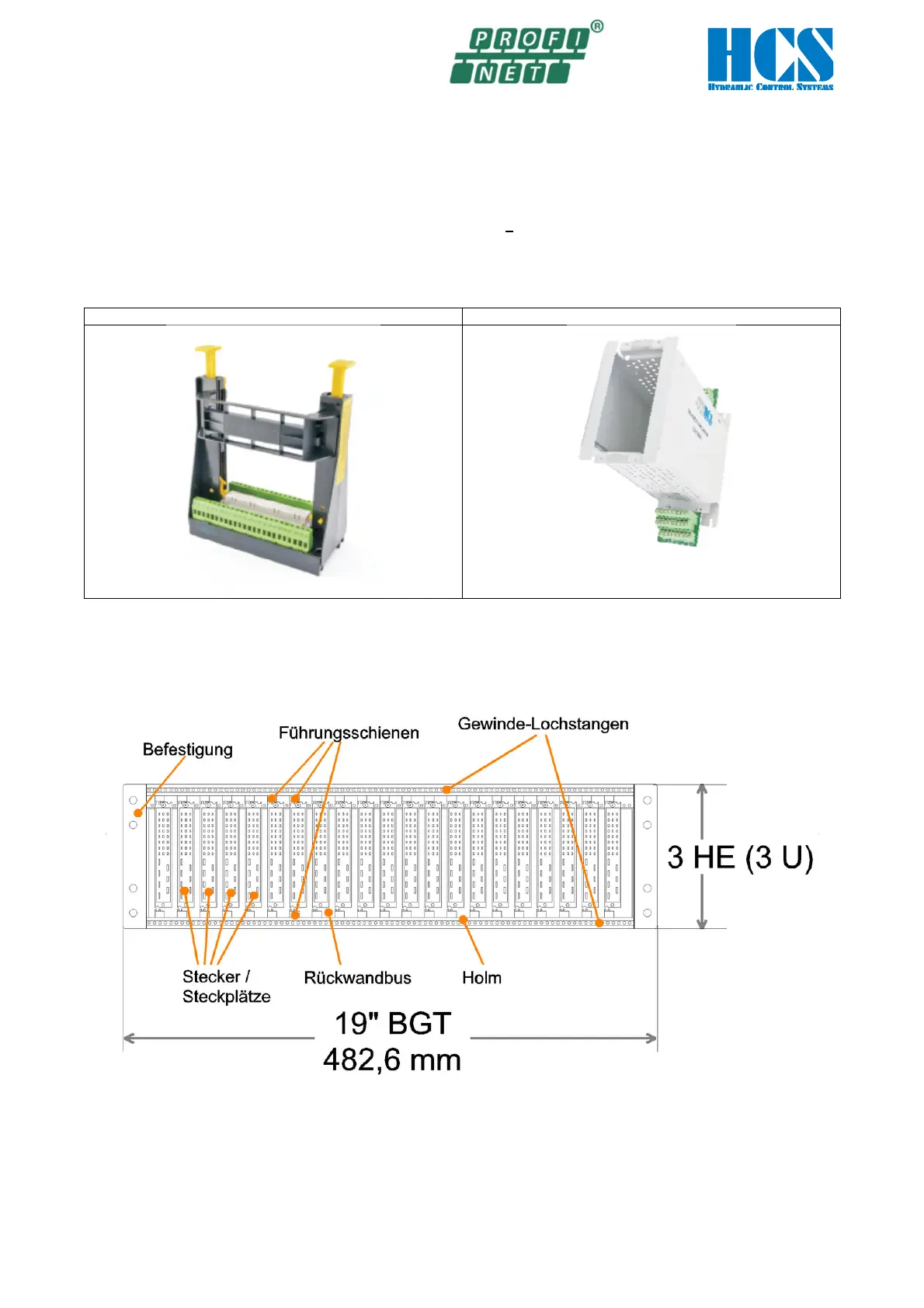

Card holder (HCS article number: 5 741 010 00) Universal rack (HCS article number: 5 741 000 00)
Figure 3 : Card holder and universal rack (not to scale!)
Dimensions Eurocard for 19” rack mounting:
For 3 HE: 100 mm × 160 mm, connector on small side
Faceplate dimensions DAC-4x(A): 3 HE x 10 TE (= 128,4 x 50,5 mm)
Figure 4 : General example for 19” Rack systems 3 HE
