10 Configuration for SIEMENS TIA portal
Two Profinet function blocks for the Siemens TIA portal are available, and can be downloaded from the HCS web side.
Which one, the user should take, is depending on the used CPU family.
• Siemens CPU series S7-300,400 PN_DAC4a_CLASSIC_DB(Vxx).scl
• Siemens CPU series S7-1200,1500 PN_DAC4a_DB.scl(Vxx).scl

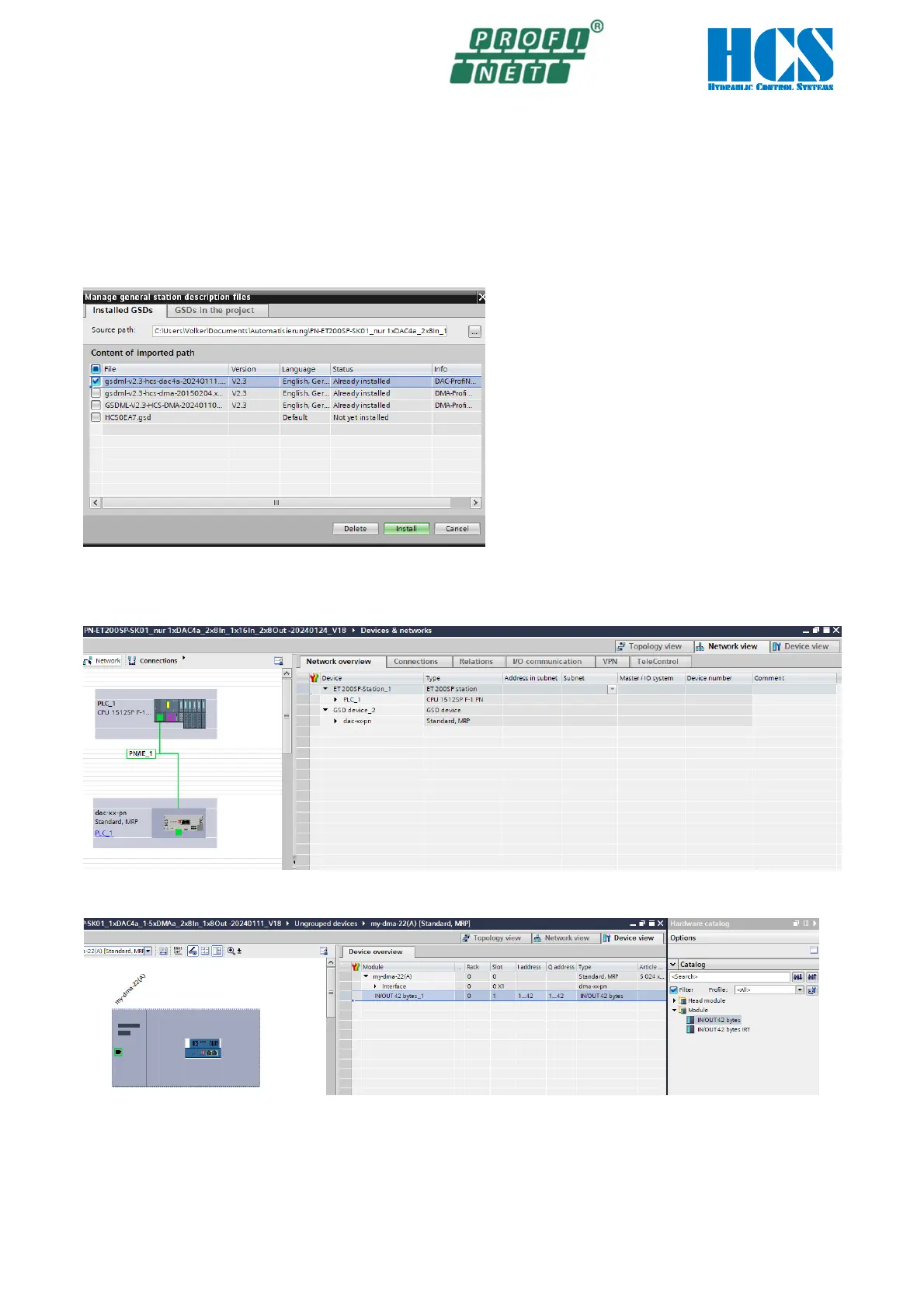

10.1 Setup the network configuration for the DAC-4x(A)
Download and install the GSD file
Add new “Distributed I/O” and connect The DAC-4x(A) to the network.
10.2 Assign the IO-Module from the GSD to the device
