DAC-42(A)-x-PN
Page 59
DAC-42(A)-x-PN
Manual
Revision: 1.0
22.01.2024

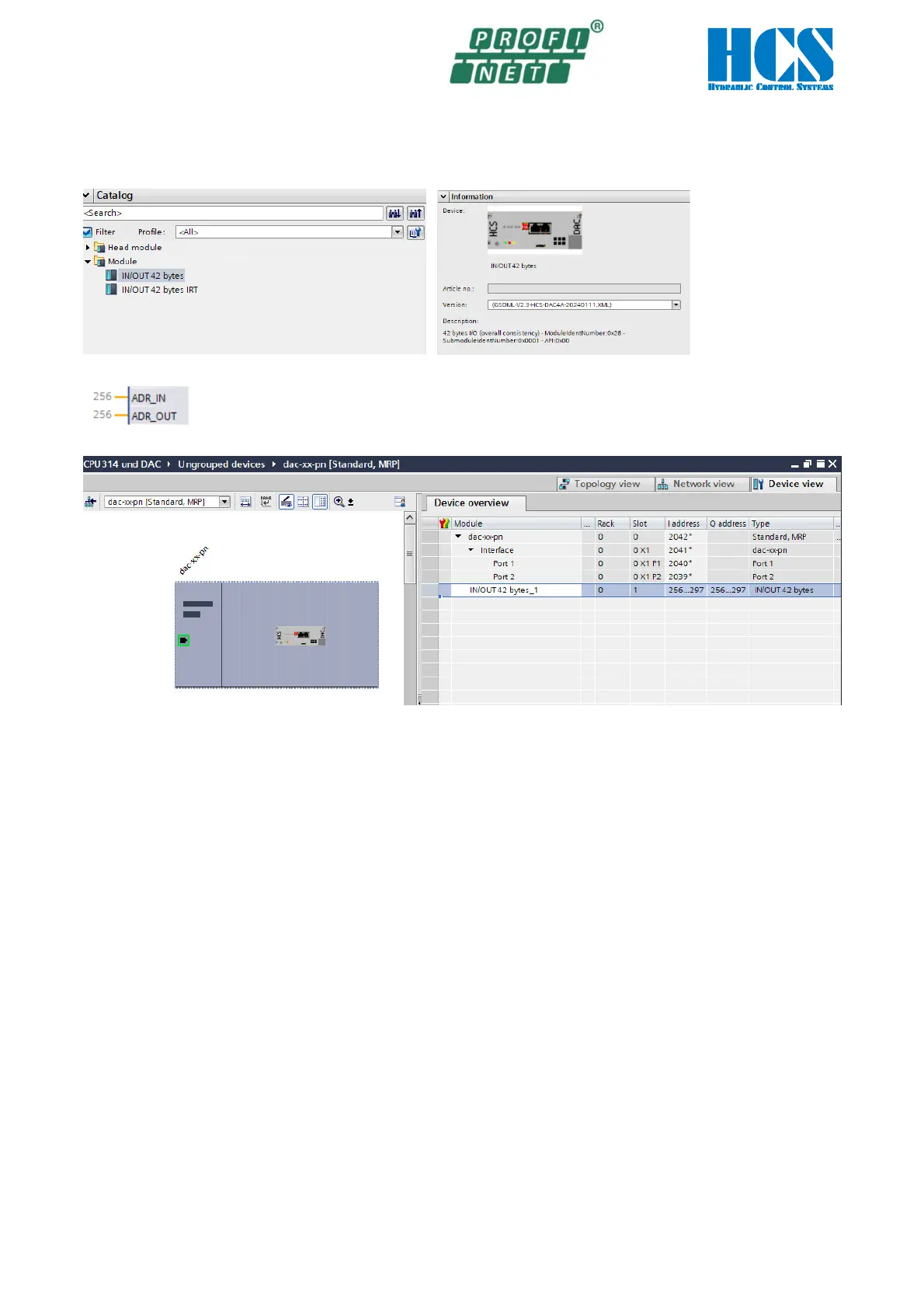

10.4.2 Classic CPU 300,400: Definition of the data buffer address
Unlike the CPU 1200, 1500, the E-address and A-address must be assigned to the variables #ADR_IN and #ADR_OUT
here.
Add the IN/OUT module
The data buffer address #ADR_IN, #ADR_OUT is predefined to 256.
Please check the correct address of your system and change the value if necessary.
