6 Commissioning
6.1 Front elements
The electrical wiring must be checked before switching on the supply voltage. Limit switches
and safety devices must be activated to avoid uncontrolled movements. Carefully follow
relevant safety regulations. Suitable emergency stop measures must be taken.
6.1.1 DAC-42(A)-x-PN

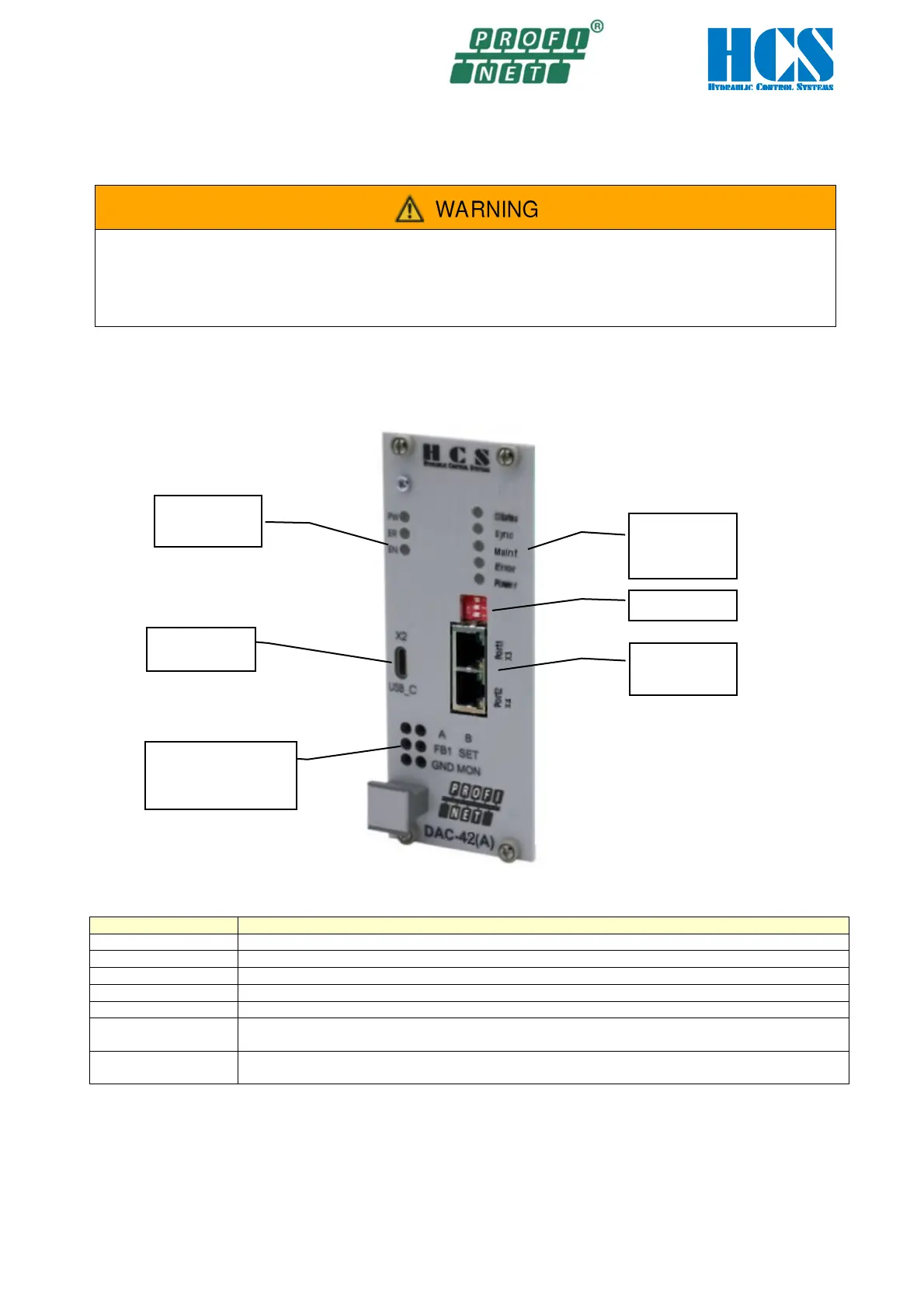

Figure 17 : DAC-42(A)-x-PN Front elements
Element
Function
Status LED’s Display of status, Power, Enable, Error.
Profinet LED’s Display of status of the profinet connection.
Profinet LED’s Display of status of the profinet connection.
Profinet connection’s Ethernet 2xRJ45 input/Output to the network
DIP-switch Reserved, for further use
USB-C interface Trough which programing and accessing parameters via PC and HCSTool is been executed.
RS232 (optional)
Measuring and test
jacks
Direct measurement of set point, actual value, solenoid currents and internal values via the
monitor output. Use 2 mm sockets (S1.06, FB1, A, B, d1.01 ... d2.13)
Table 9: Front elements DAC-42(A)-x-PN explanation
Test and diagnosis
jacks for
2 mm connector
Interface
USB-C
Status
LED‘s
Profinet
LED‘s
DIP-Switch
Profinet
connection
