HCS DAC-42A - Terminal Assignment; Picture of Rear Connector

DAC-42(A)-x-PN
Page 22
DAC-42(A)-x-PN Manual
Revision: 1.0 22.01.2024
5.3 Terminal assignment
Pin d b Z
2 0 V (External) DIO 1 or S1.08 - Sign (direction) digital set values
4 Digital set value 2 (S1.02) DIO 2 + Sign (direction) digital set values
6 Digital set value 3 (S1.03) DIO 3
Digital set value 4
(S1.04)
8 ENABLE (DI 1) Analog input 1 (Option)
Digital set value 1
(S1.01)
10 Sensor 1 (FB 1) U
E
, I
E
Analog output n/c
12 Analog set value 6 U
E+
(S1.06) n/c Analog set value 5 U
E+
(S1.05)
14 ERROR (DO 1) COMPARATOR (DO 2) Sensor 2 (FB 2) U
E
16 Analog set value 6 U
E-
(S1.06) Analog input 2 (Option) Analog set value 7 I
E
(S1.07)
18 Digital GND PE Reset Ramp (DI 2)
20 Reference output - 10.0 V
Break output
24 V / 1 A
Reference output
+ 10.0V
22 Solenoid output A - Solenoid output A - Solenoid output A -
24 Solenoid output B - Solenoid output B - Solenoid output B -
26 0 V (Power) 0 V (Power) Analog GND
28 Solenoid output A + Solenoid output A + Solenoid output A +
30 Solenoid output B + Solenoid output B + Solenoid output B +
32 + 24 V (Power) + 24 V (Power) 24 V (External)
Table 7: Terminal assignment

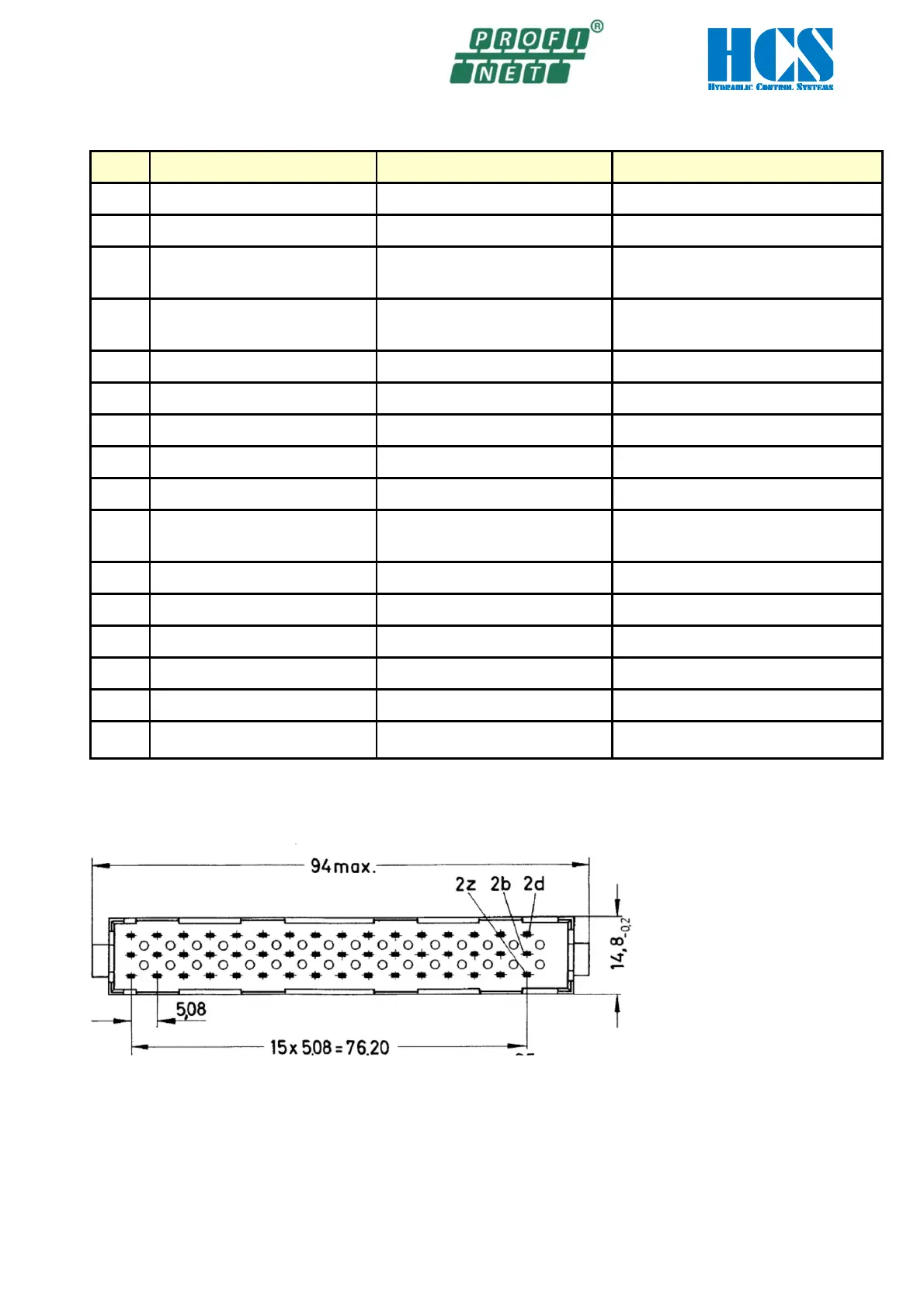

5.4 Picture of rear connector
Connector: IEC 60603-2 form F 48 pins
Figure 7 : Connector F48
