HCS DAC-42A - Wiring Diagram for Operation Mode 02

70 pages

Save Page as PDF

To Next Page

To Previous Page

DAC-42(A)-x-PN

Page 25

DAC-42(A)-x-PN

Manual

Revision: 1.0

22.01.2024

5.6.2 Wiring diagram for operation mode 02

Open loop, 2 proportional valves with 1 solenoid each

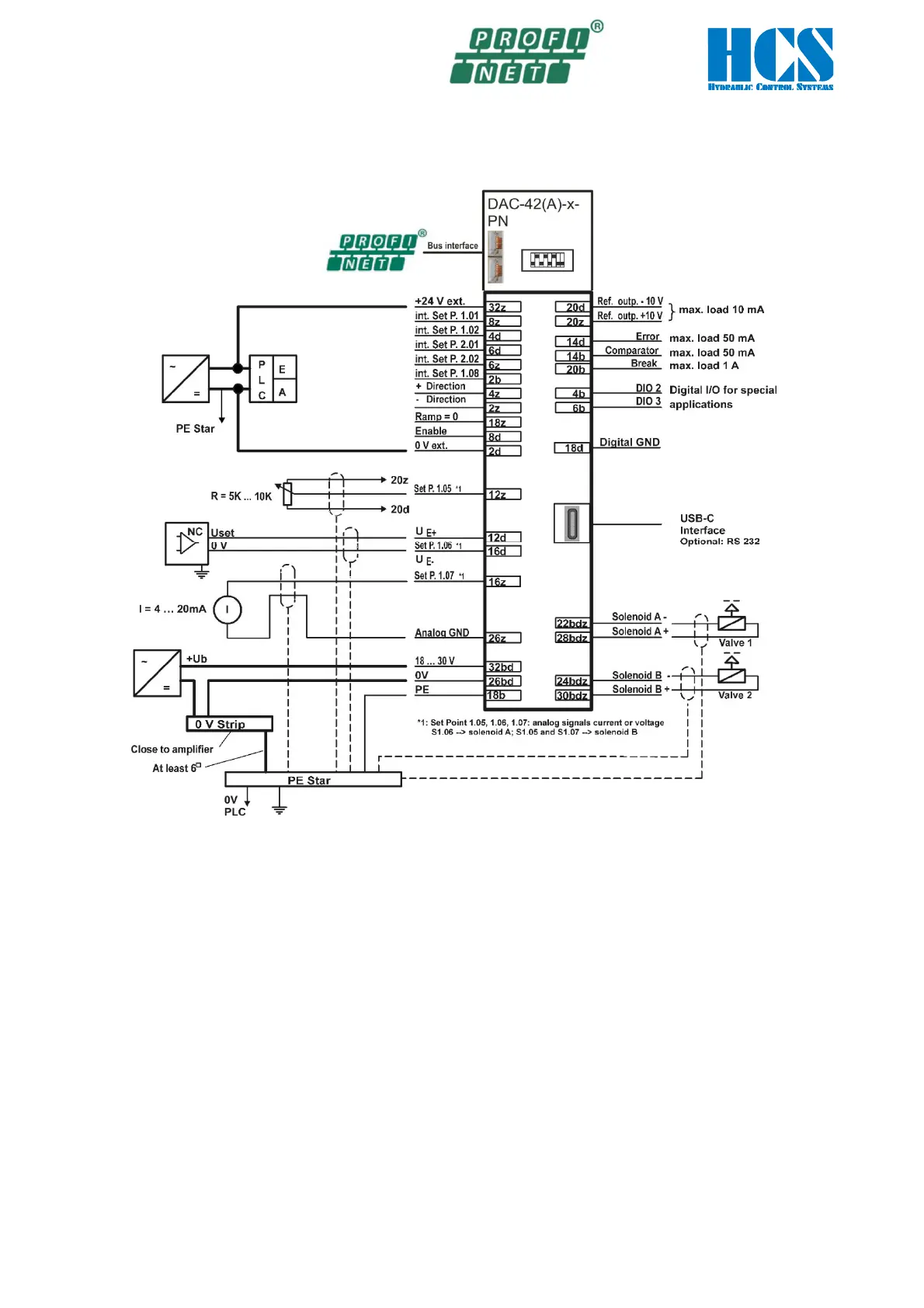

Figure 10 : Wiring diagram Mode 02
