HCS DAC-42A - Operation Mode 02; 2 Valves with 1 Solenoid Each, Open Loop

70 pages

Save Page as PDF

To Next Page

To Previous Page

DAC-42(A)-x-PN

Page 34

DAC-42(A)-x-PN

Manual

Revision: 1.0

22.01.2024

6.2.2 Operation Mode 02; 2 valves with 1 solenoid each, open loop

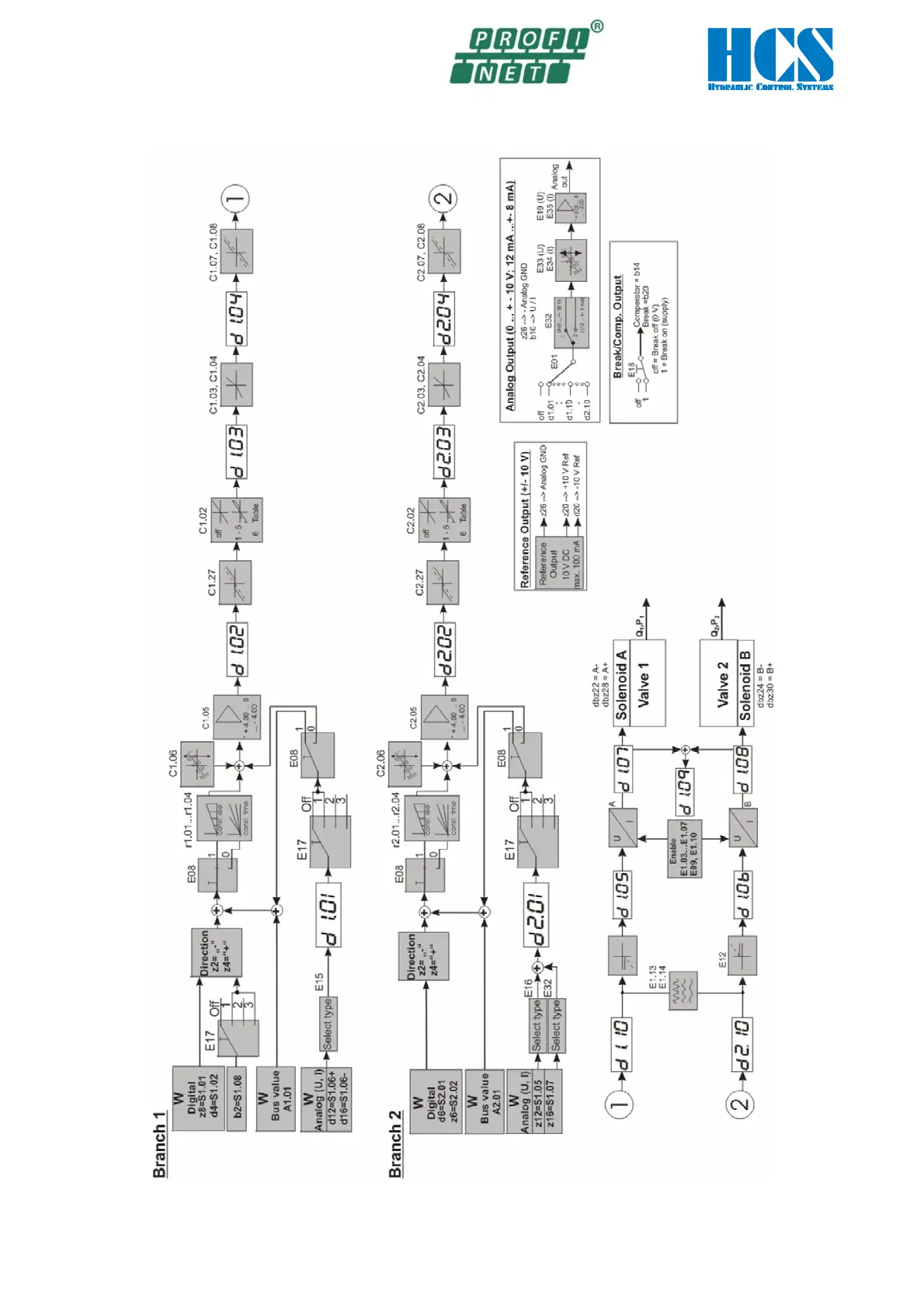

Figure 19 : Software block diagram operation mode 2
