02/11/98
10
.
IDEAL CHARGE STATE TABLE
CYCLE VOLTAGE BATTERY CURRENT STATUS LIGHT
CHARGE 12.0 - 14.4 (Rising) Maximum
Freedom
rating RED
ACCEPTANCE 14.4 (Constant) Falling YELLOW
FLOAT 13.5 (Constant) Small, less than 2% of Capacity GREEN
EQUALIZE 13.2 - 16.0 (Rising) Constant until 16V SLOW FLASH RED
Link 1000
FACTORY DEFAULT VALUES:
Battery capacity = 200 Ahrs
Acceptance Voltage = 14.4 Volts for 12 Volt systems
= 28.8 Volts for 24 Volt systems
Charged Current % = 2% (of battery capacity)
Float Voltage: 0.9V below the Acceptance Voltage for Liquid electrolyte batteries.
0.6V below the Acceptance Voltage for Gelled electrolyte batteries.
Ambient Temp. = 70
0
F (See Temperature Compensation Table, Page 20)

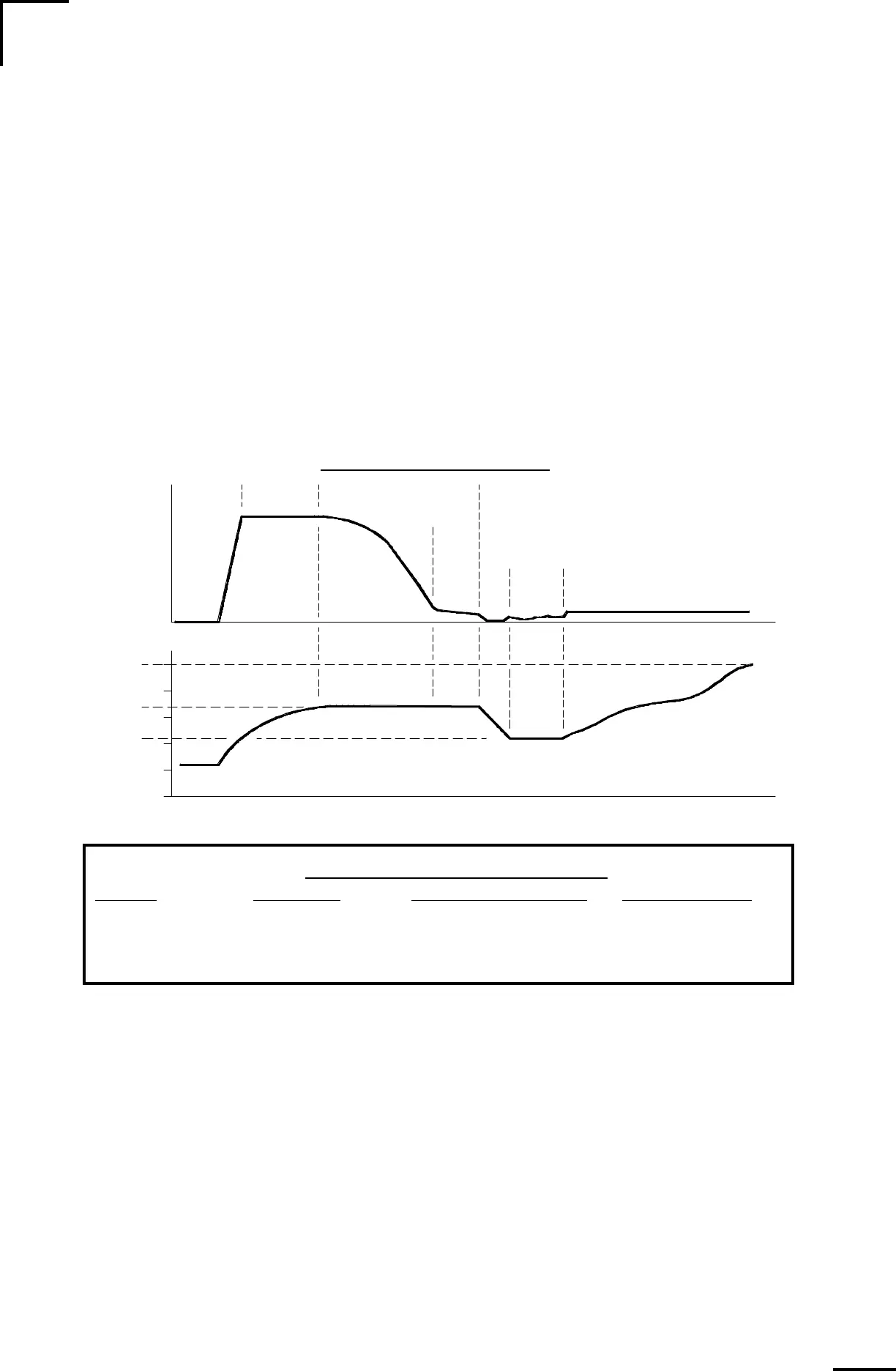

IDEAL CHARGE CURVE
CHARGING AMPS
EQUALIZE
(8 hrs Max.)
Time
BATTERY VOLTAGE (2X for 24V)
EQUAL-
IZE
ACCEPTANCE
FLOAT
DELAY
ON
RAMP
UP
CHARGE
FLOAT
ACCEPTANCE
ACCEP-
TANCE
HOLD
Time
THE IDEAL CHARGE CURVE
The
Link 1000
transmits critical battery state of charge information to the
Freedom
inverter/charger. This enables the charger to conform to our proven Ideal
Charge Curve with four basic cycles; CHARGE, ACCEPTANCE, FLOAT, and
EQUALIZE.
The CHARGE cycle supplies full charger output current until the battery reaches
the Acceptance charging voltage (14.4V typ.). The ACCEPTANCE cycle continues until
the battery is accepting only a small amount of current. The battery is now full. During
the FLOAT cycle the voltage is lowered to maintain the batteries, without water
consumption, for long life. The EQUALIZE cycle allows for periodic "equalizing" of
liquid electrolyte batteries for maximum capacity and life. The batteries should be
Equalized every 30 days during deep cycling service.
FLOAT
TRANSI-
TION
100%
16
15
13
12
14
