Advanced Functions. See Page 19.
Locks out SET button & Advanced Functions.
See Page 27.
Displays: CEF, # CEF Recalc's, Avg. Depth of
Discharge, Deepest Discharge.
Resets Ahrs & allows Reset of everything to
Factory Default values (bottom of Page 25).
USING SET AND SEL BUTTONS
Press and hold the SET button until
SEL
is displayed to access the Set Up and
Advanced Functions modes. With SEL displayed, press the SEL button to choose the
function you want to SELect.
Pressing SEL chooses a variable or function. The Set Up mode always begins at the
(Volts) function. Each press of the SEL button scrolls to the next item. When a
variable or function is selected, its corresponding light and present value is displayed. To
change a variable, press the SET button until the value appears that you wish. The order
displayed and brief descriptions are below.

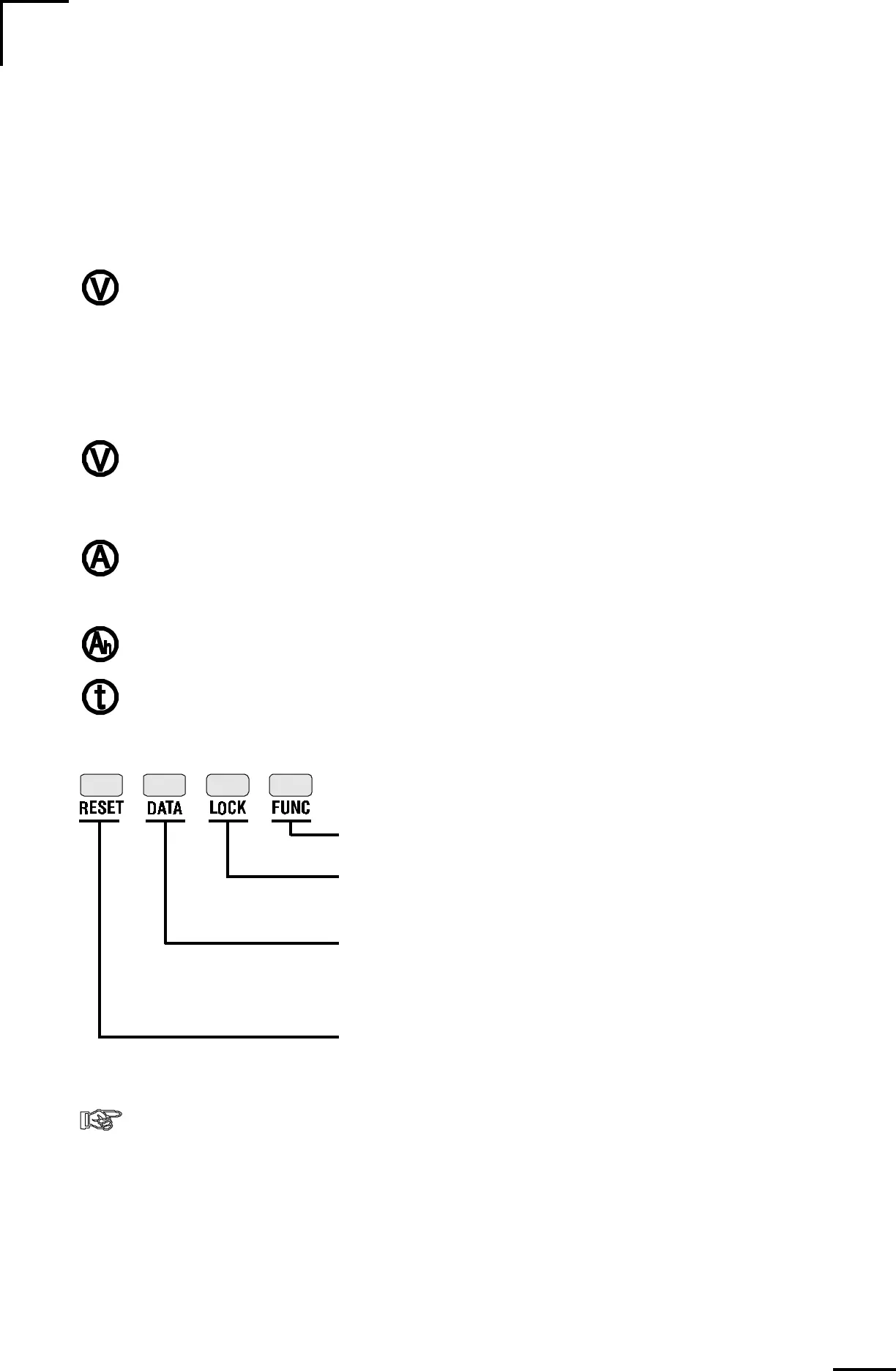

LIGHT DESCRIPTION
Charged Voltage ( The Voltage above which the battery must remain when
charging in order to be considered "full".)
Charged Current % (Charging current [ in Amps] must be below this percentage
of the battery capacity [in Amp-hours] to be considered full).
Battery Capacity in Amp-hours
Time interval over which current is averaged for time remaining function.
Pressing SEL in the Set Up mode steps through the following:
Now let's SET UP your system! We'll explain Charged
Voltage, Charged Current Percentage, Battery Capacity, Time
of Operation Remaining averaging, and set an appropriate rate
compensation (Peukert) exponent.
