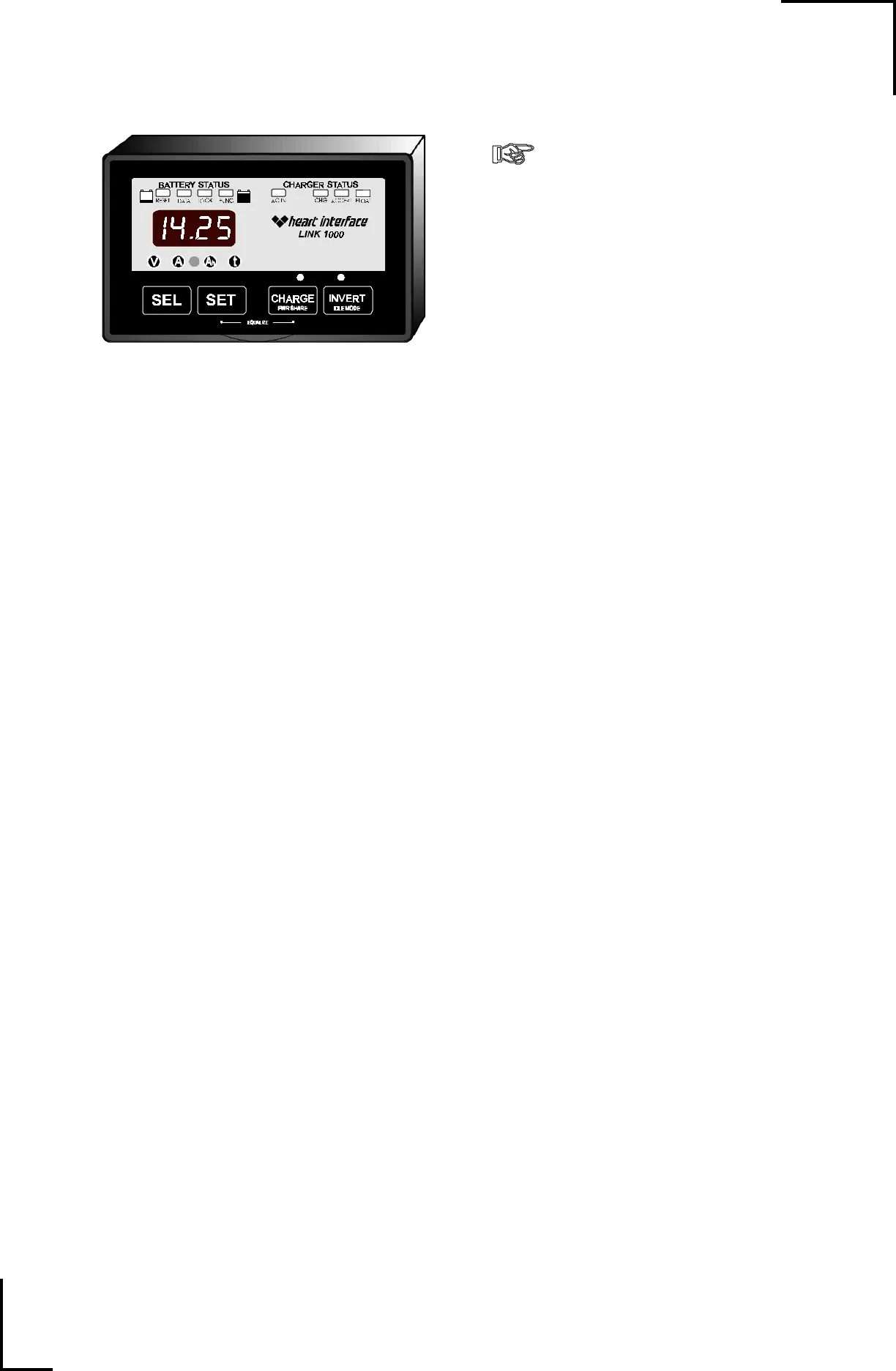

Your
Link 1000
comes with
default values chosen to work with most
systems. Normally the only values that
may need to be changed are: The battery
capacity, battery type (liquid or gelled),
temperature, and high discharge rate com-
pensation (Peukert) exponent. Please be
sure you understand each function before
changing the factory default values.
Holding the SET button until the numeric display reports
SEL
accesses the Set Up
and Advanced Functions modes. If you press SEL once, you will display the first Set Up
variable: Charged Voltage. Pressing SEL repeatedly will step through more variables:
Charged Current, battery Amp-hour capacity, and Time Remaining averaging. Corre-
sponding status lights come on for each. If you change any settings, please note them in
the spaces provided on Page 35.
If you continue pressing SEL, you will step through the functions named in small text
below each of the lights on the Light Bar. Some functions have multiple displays. RESET,
DATA, and LOCKing of your meter are described on Pages 25-27, while Advanced
FUNCtions being on Page 19.
When a desired variable or function is displayed, pressing the SET button will
display the present value of the function. Pressing SET again will display the next choice.
If you hold the SET button for 3 seconds, the display will begin scrolling. When the desired
value appears, release the button. If the button is held down longer, the display will
increment to the end of its range, then roll over to its minimum value and continue to scroll.
If this sounds complicated, relax! It's not. Once you go through it a few times, it
will become second nature. On the next page, we'll go through this again step-by-step.
FACTORY DEFAULT VALUES
Invert/Charge Controls:
CHARGE = ON
INVERT = OFF
Idle Mode = 4 Watts
Power Sharing = 30 Amps (Off for Freedom 25 units)
Monitoring Functions:
Charged Voltage = 13.2 Volts for 12 Volt systems
= 26.4 Volts for 24 Volt systems
Charged Current = 2% (of battery capacity, 4 Amps @ 200 A hrs)
Battery Capacity = 200 A hrs
CEF = 95% (Charge Efficiency Factor)
Ambient Temp. = 70
o
F
Battery Type = #0 (Liquid cells)
Peukert Exponent = 1.25
SETUP PROCEDURES
