HEIDENHAIN TNC 430 - Page 197

HEIDENHAIN TNC 426, TNC 430 171
6.6 Path Contours—FK Free Contour Programming

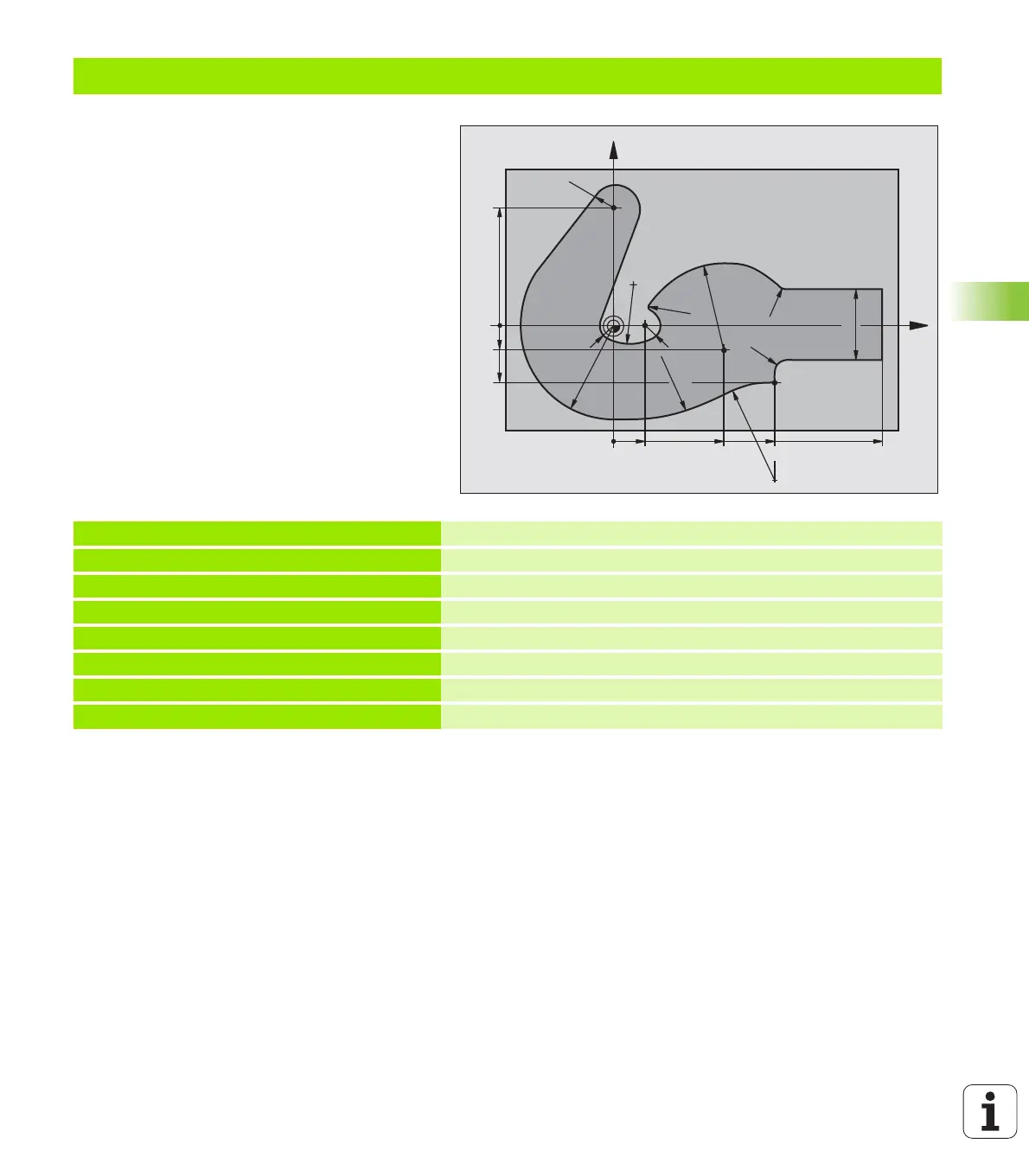

Example: FK programming 3
0 BEGIN PGM FK3 MM
1 BLK FORM 0.1 Z X-45 Y-45 Z-20 Define the workpiece blank
2 BLK FORM 0.2 X+120 Y+70 Z+0
3 TOOL DEF 1 L+0 R+3 Define the tool
4 TOOL CALL 1 Z S4500 Tool call
5 L Z+250 R0 F MAX Retract the tool
6 L X-70 Y+0 R0 F MAX Pre-position the tool
7 L Z-5 R0 F1000 M3 Move to working depth
X
Y
110
12
50
-10
44 65
R10
-25
30
R40
R6
R6
R24
R1,5
R36
R5
R5
R65
R50
