1.3 Modes of Operation
1.3 Modes of Operation
Manual Operation and Electronic Handwheel
The Manual Operation mode is required for setting up the machine
tool. In this operating mode, you can position the machine axes
manually or by increments, set the datums, and tilt the working plane.
The Electronic Handwheel mode of operation allows you to move the
machine axes manually with the HR electronic handwheel.
Soft keys for selecting the screen layout (select as described
previously)
Positioning with manual data input (MDI)
This mode of operation is used for programming simple traversing
movements, such as for face milling or pre-positioning. You can also
define point tables for setting the digitizing range in this mode.
Soft keys for selecting the screen layout

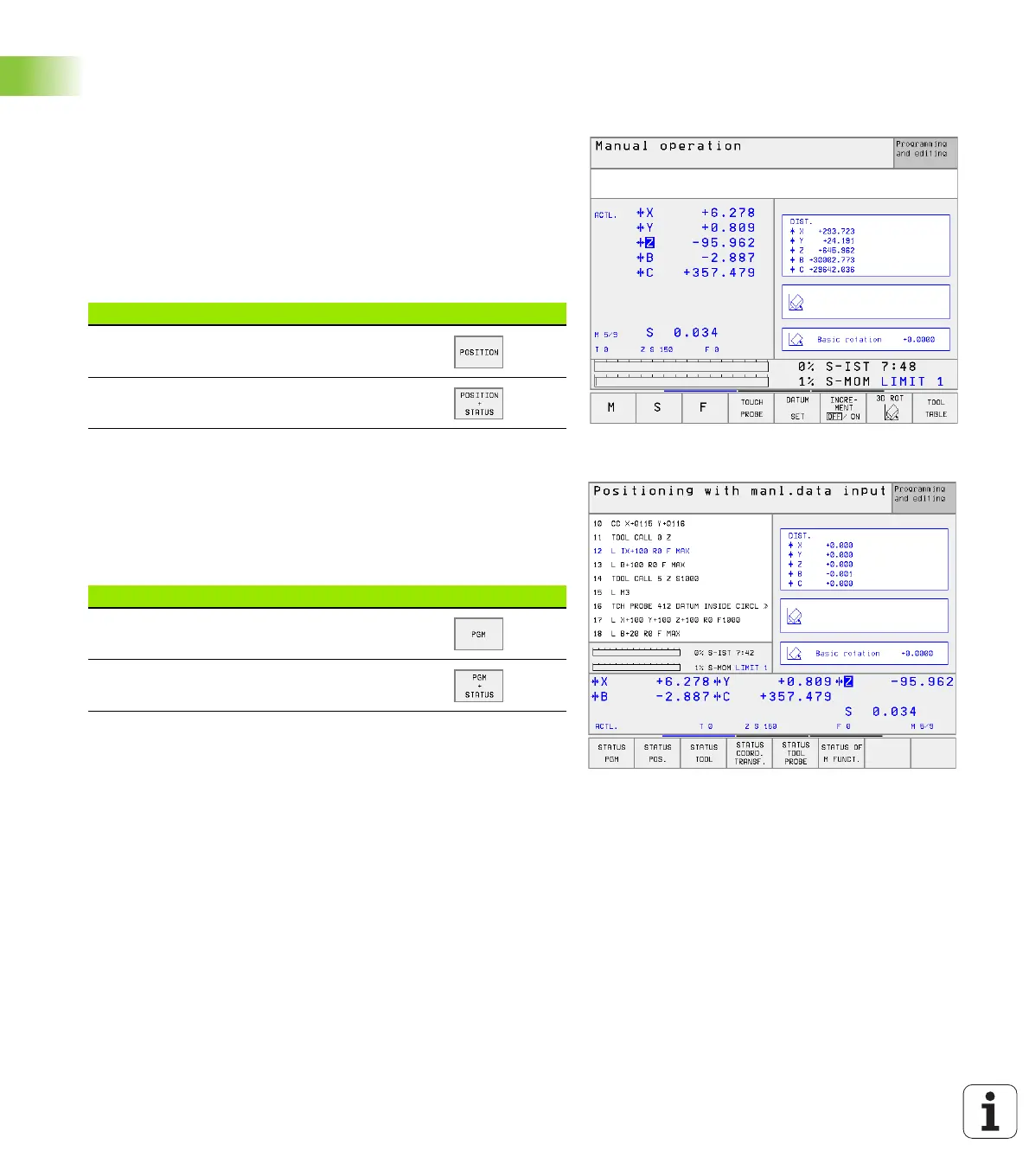

Screen windows Soft key
Positions
Left: positions. Right: status display.
Screen windows Soft key
Program
Left: program blocks, right: status display
