10 1 Introduction
1.4 Status Displays
Additional status displays
The additional status displays contain detailed information on the
program run. They can be called in all operating modes, except in the
Programming and Editing mode of operation.
To switch on the additional status display:
Call the soft-key row for screen layout.
Select the layout option for the additional status
display.
To switch on the additional status display:
Shift the soft-key rows until the STATUS soft keys
appear.
Select the desired additional status display, e.g.
general program information.
You can choose between several additional status displays with the
following soft keys:
General program information
4
6
1
2
3
5

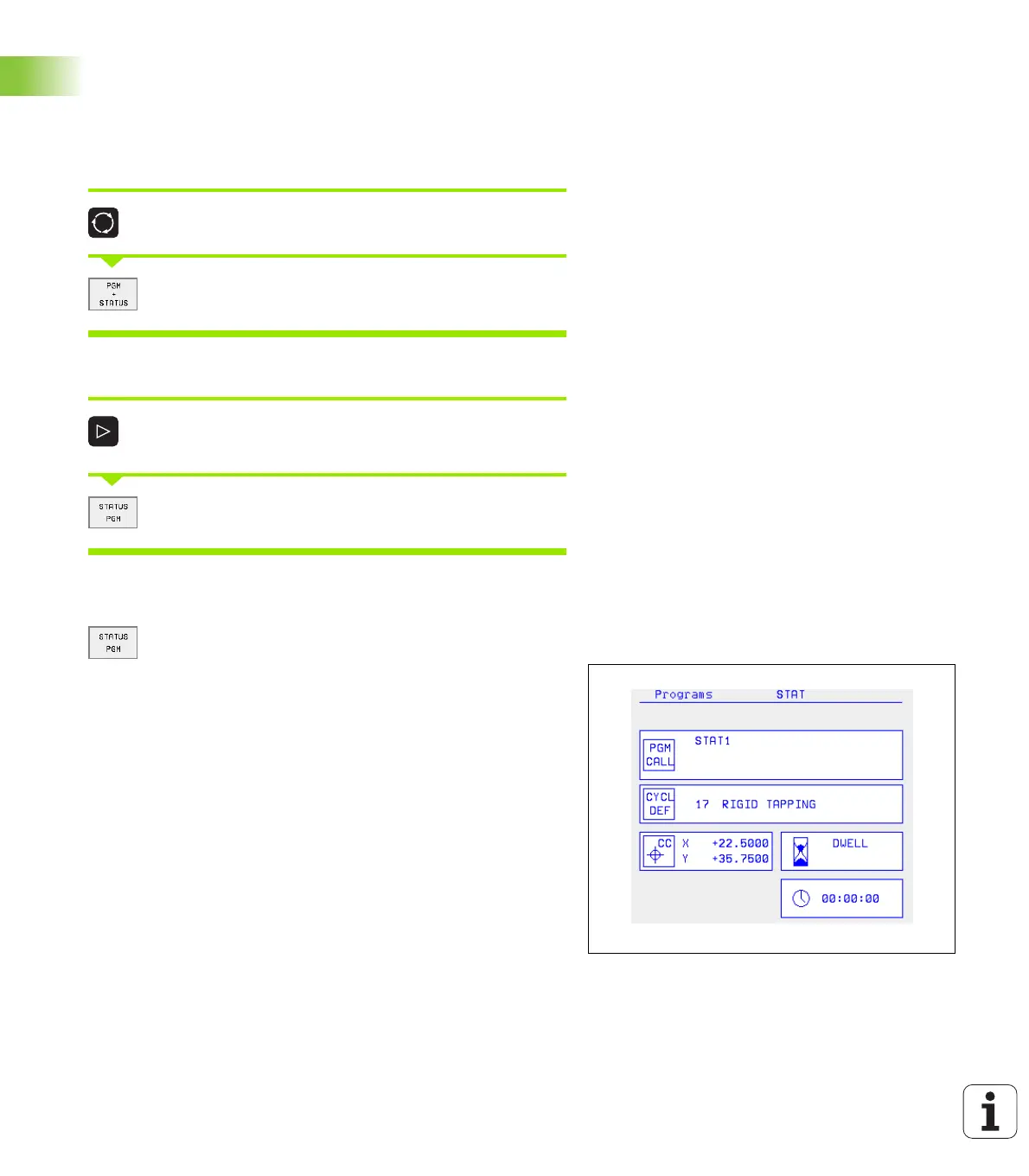

1 Name of main program
2 Active programs
3 Active machining cycle
4 Circle center CC (pole)
5 Operating time
6 Dwell time counter
To Next Page
