HEIDENHAIN TNC 426, TNC 430 11

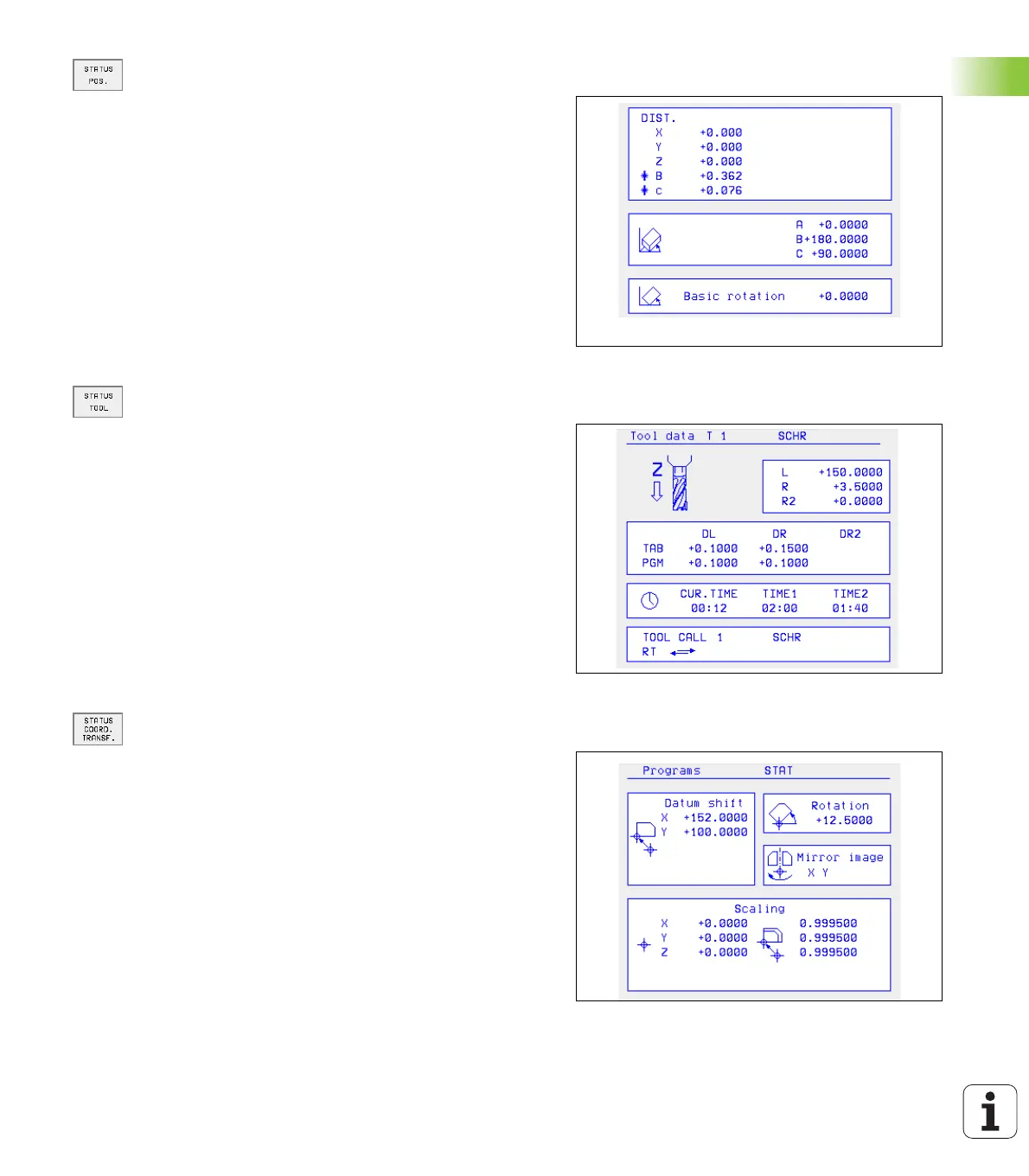

1.4 Status Displays
Positions and coordinates
Information on tools
Coordinate transformations
See “Coordinate Transformation Cycles” on page 319.
2
4
1
3
1 Position display
2 Type of position display, e.g. actual position
3 Tilt angle of the working plane
4 Angle of a basic rotation
3
5
1
2
4
6
1 n T: Tool number and name
n RT: Number and name of a replacement tool
2 Tool axis
3 Tool length and radii
4 Oversizes (delta values) from TOOL CALL (PGM) and the tool
table (TAB)
5 Tool life, maximum tool life (TIME 1) and maximum tool life for
TOOL CALL (TIME 2)
6 Display of the active tool and the (next) replacement tool
5
6
4
1
2
3
1 Name of main program
2 Active datum shift (Cycle 7)
3 Active rotation angle (Cycle 10)
4 Mirrored axes (Cycle 8)
5 Active scaling factor(s) (Cycles 11 / 26)
6 Scaling datum
