Function

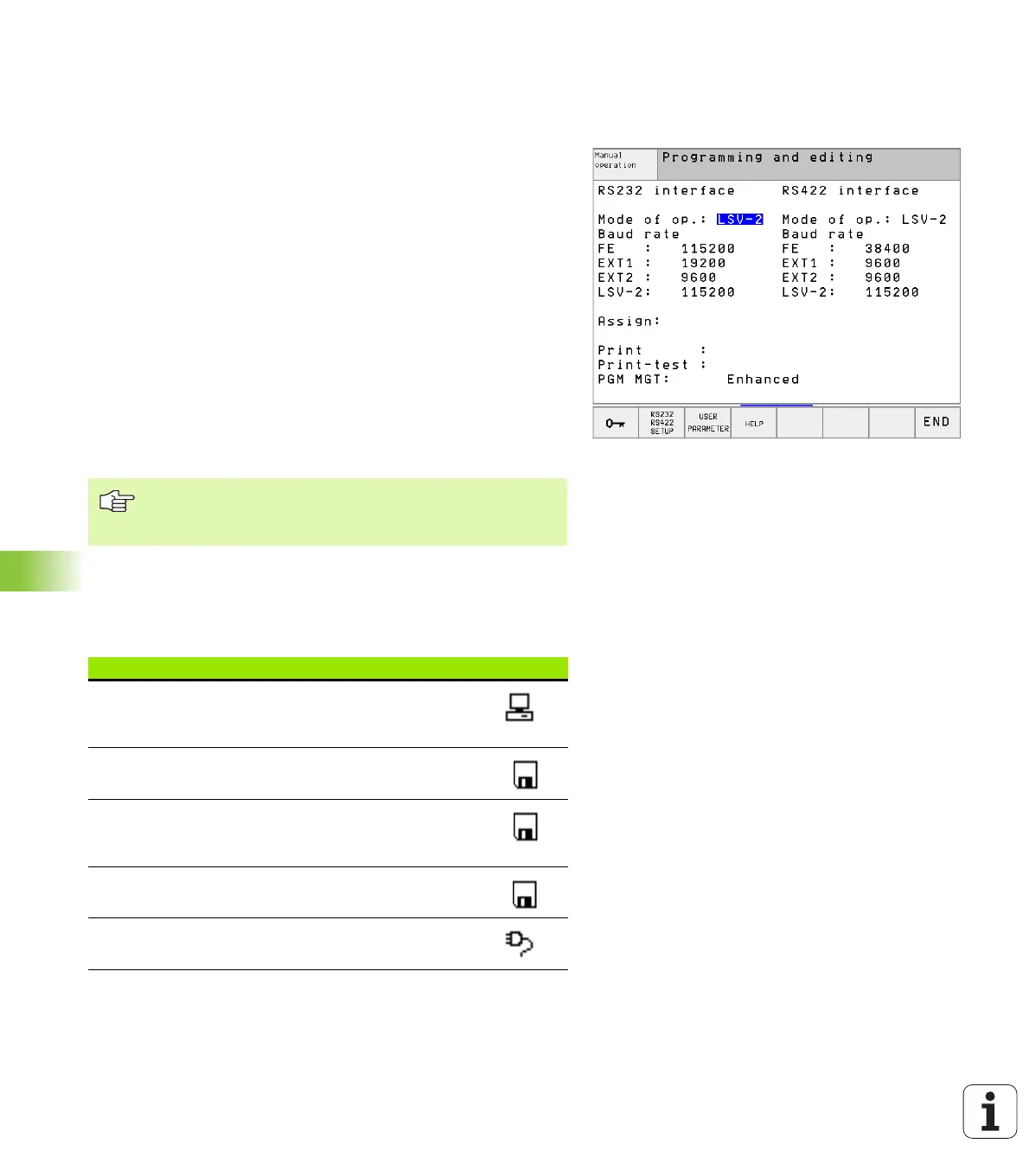

To setup the data interfaces, press the RS 232- / RS 422 - SETUP soft
key to call a menu for setting the data interfaces:
Setting the RS-232 interface
The mode of operation and baud rates for the RS-232 interface are
entered in the upper left of the screen.
Setting the RS-422 interface
The mode of operation and baud rates for the RS-422 interface are
entered in the upper right of the screen.
Setting the OPERATING MODE of the external
device
Setting the BAUD RATE
You can set the BAUD-RATE (data transfer speed) from 110 to
115,200 baud.
The functions “Transfer all files,” “Transfer selected file,”
and “Transfer directory” are not available in the operating
modes FE2 and EXT.
External device Operating mode Symbol
PC with HEIDENHAIN software
TNCremo for remote operation of
the TNC
LSV2
PC with HEIDENHAIN data transfer
software TNCremo
FE1
HEIDENHAIN floppy disk units
FE 401 B
FE 401 from prog. no. 230 626 03
FE1
FE1
HEIDENHAIN floppy disk unit
FE 401 up to prog. no. 230 626 02
FE2
Non-HEIDENHAIN devices such as
punchers, PC without TNCremo
EXT1, EXT2
