HEIDENHAIN TNC 426, TNC 430 253
8.3 Cycles for Drilling, Tapping and Thread Milling

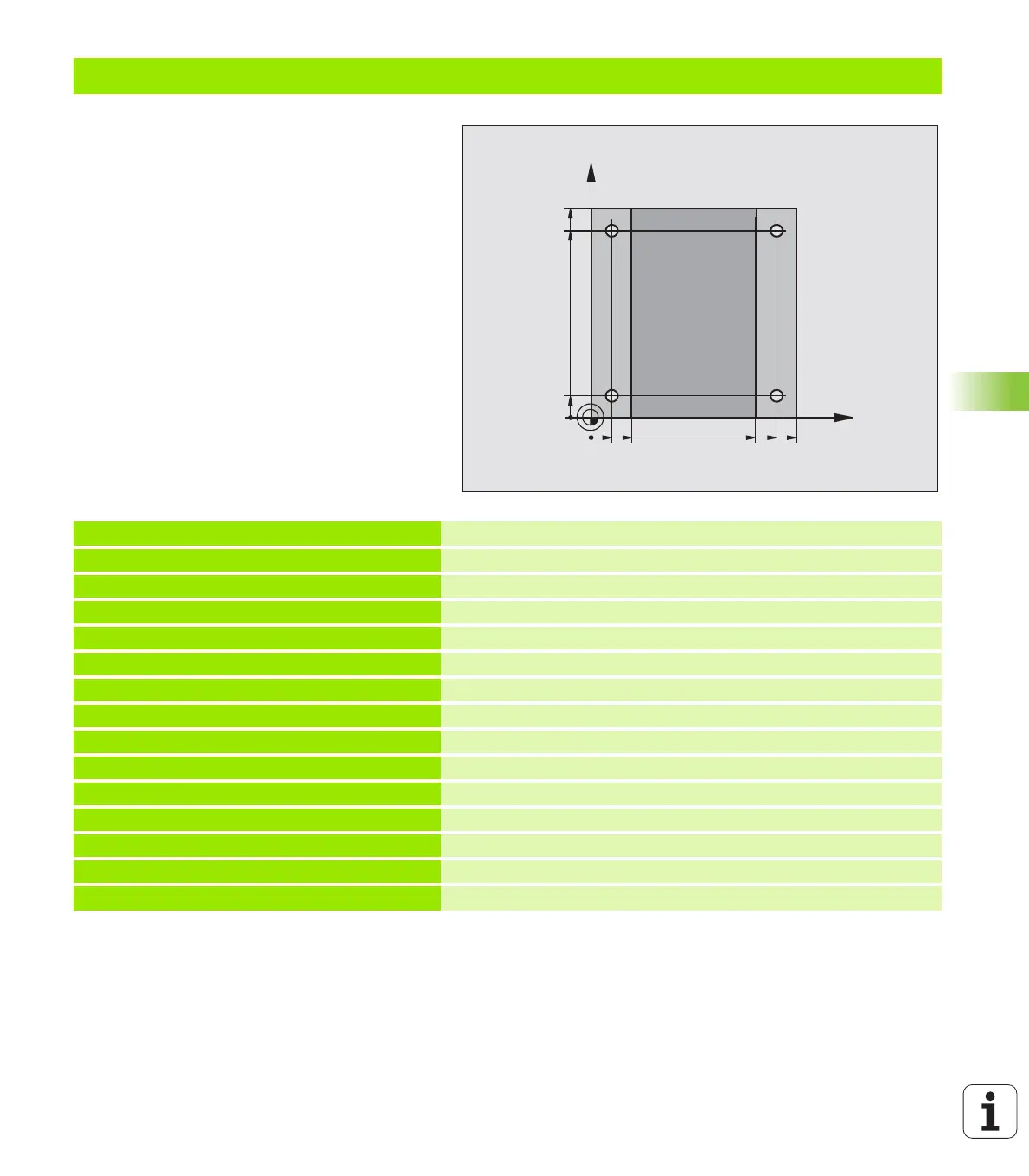

Example: Drilling cycles
0 BEGIN PGM C200 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20 Define the workpiece blank
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL DEF 1 L+0 R+3 Define the tool
4 TOOL CALL 1 Z S4500 Tool call
5 L Z+250 R0 F MAX Retract the tool
6 CYCL DEF 200 DRILLING Define cycle
Q200=2 ;SET-UP CLEARANCE
Q201=-15 ;DEPTH
Q206=250 ;FEED RATE FOR PLNGNG
Q202=5 ;PLUNGING DEPTH
Q210=0 ;DWELL TIME AT TOP
Q203=-10 ;SURFACE COORDINATE
Q204=20 ;2ND SET-UP CLEARANCE
Q211=0.2 ;DWELL TIME AT BOTTOM
X
Y
20
10
100
100
10
90
9080
