HEIDENHAIN TNC 426, TNC 430 407
11.3 Test run

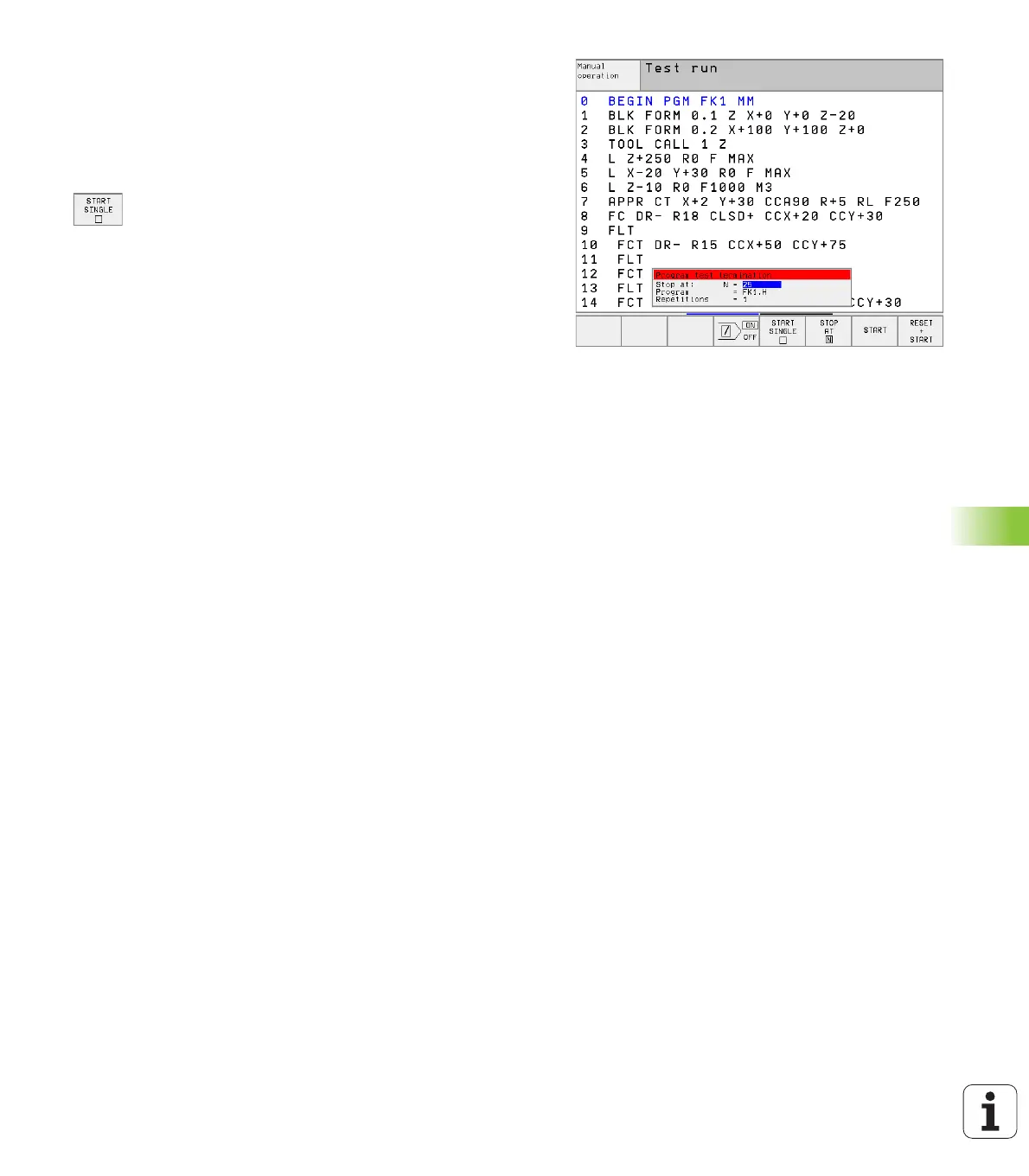

Run a program test up to a certain block
With the STOP AT N function the TNC does a test run up to the block
with block number N.
U Go to the beginning of program in the Test Run mode of operation.
U To run a program test up to a specific block,
press the STOP AT N soft key.
U Stop at N: Enter the block number at which you wish
the test to stop.
U Program: Enter the name of the program that contains
the block with the selected block number. The TNC
displays the name of the selected program. If the test
run is to be interrupted in a program that was called
with PGM CALL, you must enter this name.
U Repetitions: If N is located in a program section
repeat, enter the number of repeats that you want to
run.
U To test a program section, press the START soft key.
The TNC will test the program up to the entered
block.
