Automation Instructions CPK • 10-2015 •106-29009
Installation
11
5 Installation
5.1 Installing the bench mount kit CPK
Tools needed
• Open-ended wrench, w/f 13
• Allen key, w/f 4

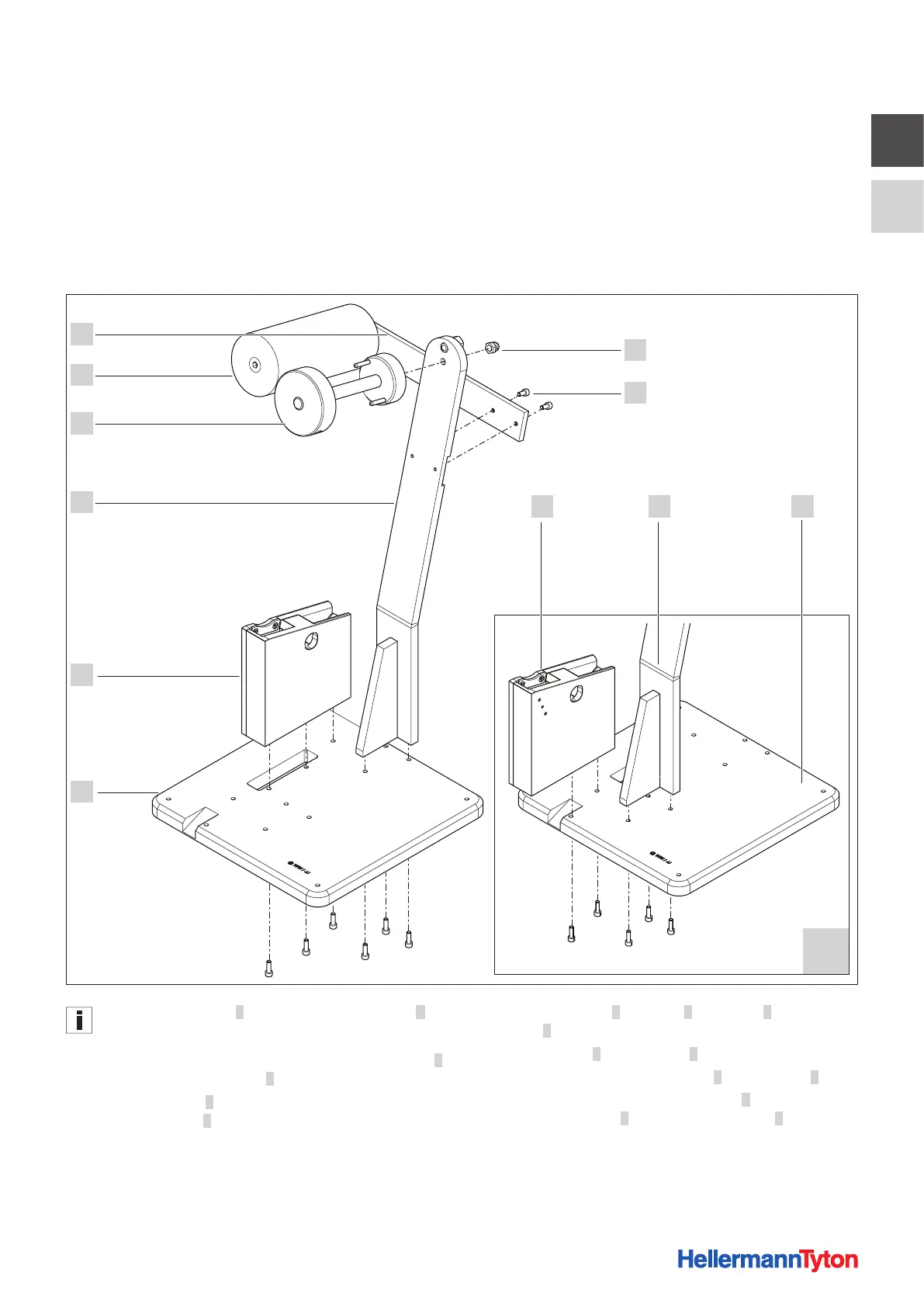

5.1.1 Assembling the bench mount kit CPK
A
2
1
4
3
6
5
54 3
7
8
The holes in base plate 3 allow for options in assembly A of
the bench mount kit CPK.
f Slip the mount of the cable-tie reel with clamping ring6
through the hole in upright5.
f Engage acorn nut1 at the other side and secure the
mount to upright5.
f Secure relay roller7 with arm 8 to upright 5 with
screws2.
f Secure upright 5 to base plate 3.
f Secure the housing of tool mount 4 to base plate 3.
f For optional installation of tool mount 4, move the tool
mount and upright 5 forward on base plate 3 and secure
them in position.
