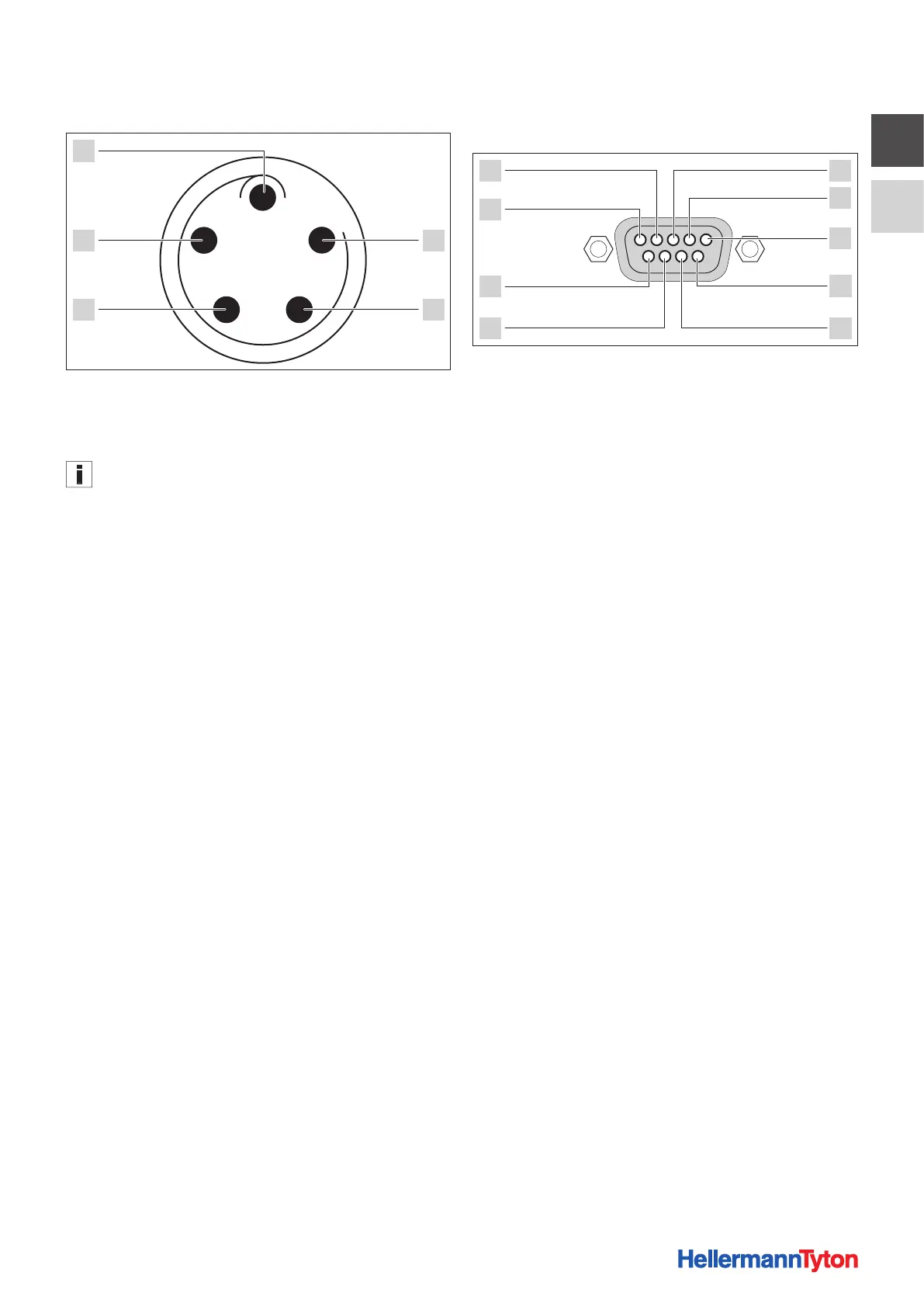

7.2.2 Pinout, tool socket
1
5 2
34
1 Data A: Signal RS 485-B
2 Not used
3 Zero voltage (0 V)
4 Voltage +25.2 V
5 Data B: Signal RS 485-A
The red dot above the socket for the tool makes the plug
easier to position properly.
7.2.3 Pinout of serial interface, power pack with
control box
1
6
7
3
4
5
2
9
8
1 N.C.
2 RS-485+
3 RS-485-
4 N.C.
5 GND
6 N.C.
7 N.C.
8 N.C.
9 +24 V (fuse nominal 0.5 A; activatable and deactivatable)
