2.5 Underlying hazards associated with use of
the tool or product
2.5.1 Cleanliness at the workplace
Orderliness, good lighting and cleanliness at the workplace
all help to make work easier and to minimize hazards and
the risk of injury.
Always comply with the following principles of orderliness
and cleanliness at the workplace:
f Put tools away as soon as they are no longer needed.
f Avoid trips (e.g. immediately dispose of waste by placing
it in the containers provided for the purpose).
f Immediately remove spillages of grease, oil and other
liquids.
f Clean smears off the controls.
2.5.2 Spare parts and accessories
• Use only OEM spare parts.
• After parts have been replaced, always make sure that
everything is in full working order.
• Use only accessories approved by HellermannTyton.
Accessories can affect the way in which the tool or
product works.
3 Functional description

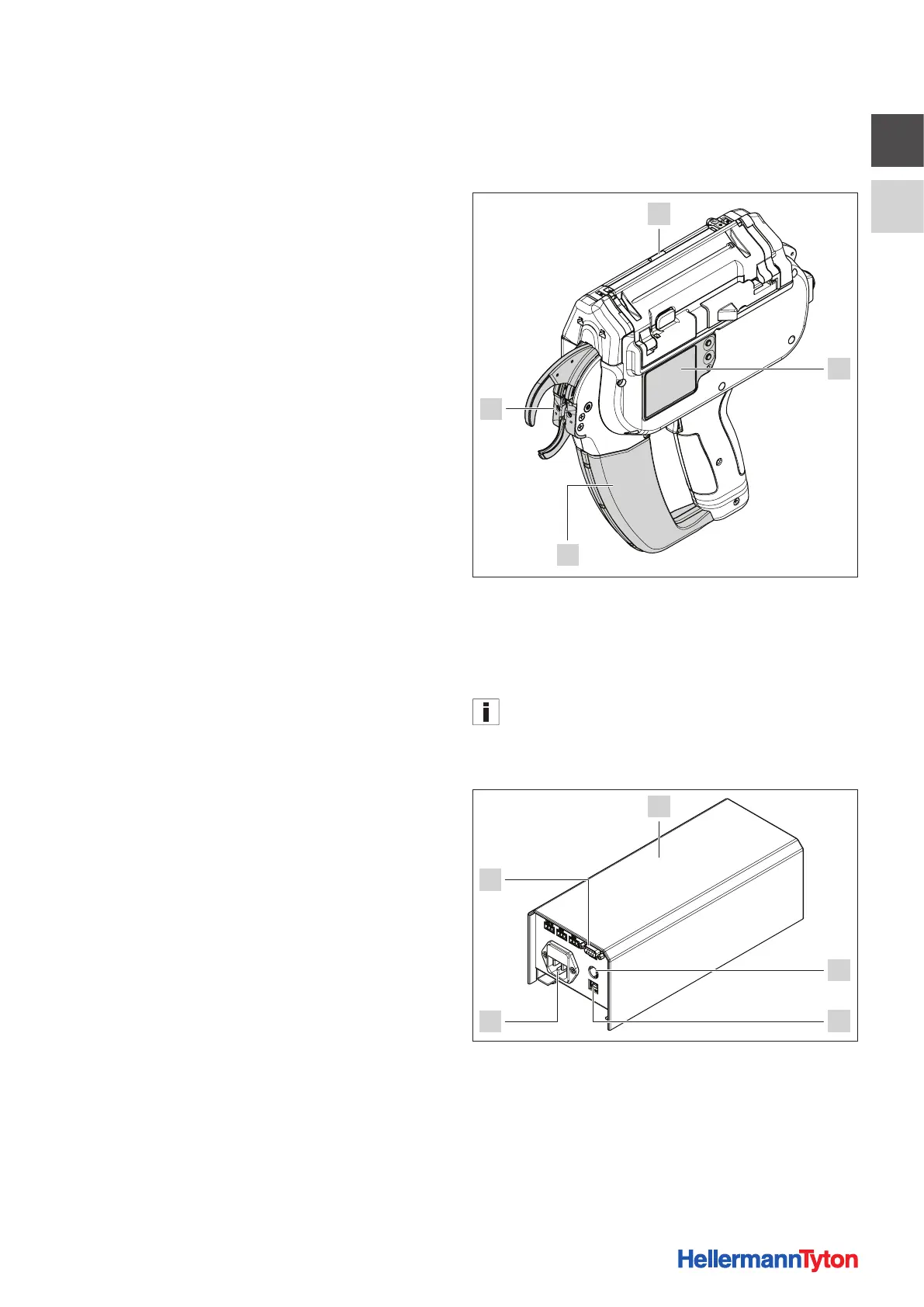

3.1 AT2000 CPK
3
1
2
4
1 AT2000 CPK
2 Display with touch-sensitive controls
3 Box for waste material
4 End cap with front sensor, top and bottom jaws
The tool loops the cable ties around the bundle and cuts the
excess length off the ties.
See the Operating Instructions for the tool for a description
of the AT2000 CPK.
3.2 Power pack with control box
1
3
2
4
5
1 Housing
2 Socket for foot-operated switch (required only for bench mount kit CPK)
3 USB port for connection to PC
4 Socket for power supply
5 Socket for serial interface
The power pack with control box supplies electricity to the
tool. The control box also provides a serial interface and
connections for an external sensor, enabling the tool to be
integrated into automatic systems. The status of the USB
port is shown by an indicator on the front of the power pack.
