Automation Instructions CPK • 10-2015 •106-29009
Servicing
20

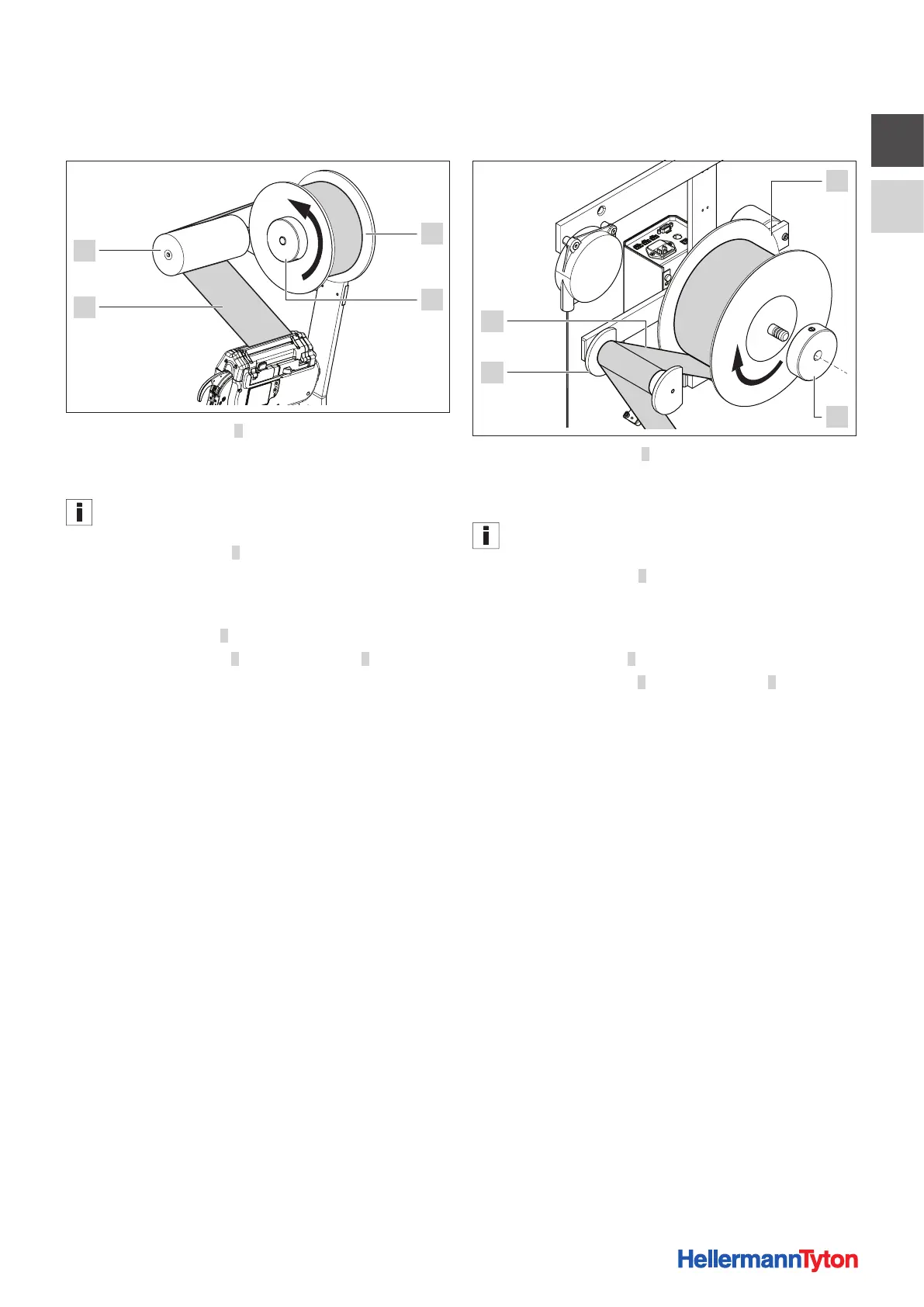

6.4 Replacing the cable-tie reel on the bench
mounting kit CPK
1
2
4
3
f Remove clamping ring 2.
f Remove the empty cable-tie reel and dispose of it in
accordance with local regulations.
Empty cable-tie reels are not taken back by the manufacturer.
f Slip new cable-tie reel 1 on to the reel mount. Be sure
tocheck that the reel is installed in correct position for
uncoiling.
; The reel uncoils in the counter-clockwise direction.
f Install clamping ring 2.
f Pass strip of cable ties 3 around relay roller 4 to the tool.
f Make sure that the strip of cable ties is not twisted.
6.5 Replacing the cable-tie reel on the overhead
suspension CPK
1
2
4
3
f Remove clamping ring 2.
f Remove the empty cable-tie reel and dispose of it in
accordance with local regulations.
Empty cable-tie reels are not taken back by the manufacturer.
f Slip new cable-tie reel 1 on to the reel mount. Be sure
tocheck that the reel is installed in correct position for
uncoiling.
; The reel uncoils in the counter-clockwise direction.
f Install clamping ring 2.
f Pass strip of cable ties 4 around relay roller 3 to the tool.
f Make sure that the strip of cable ties is not twisted.
