User manual
Manual EN V2.00 / 06-2009 11
3.2 Description of instrument parts

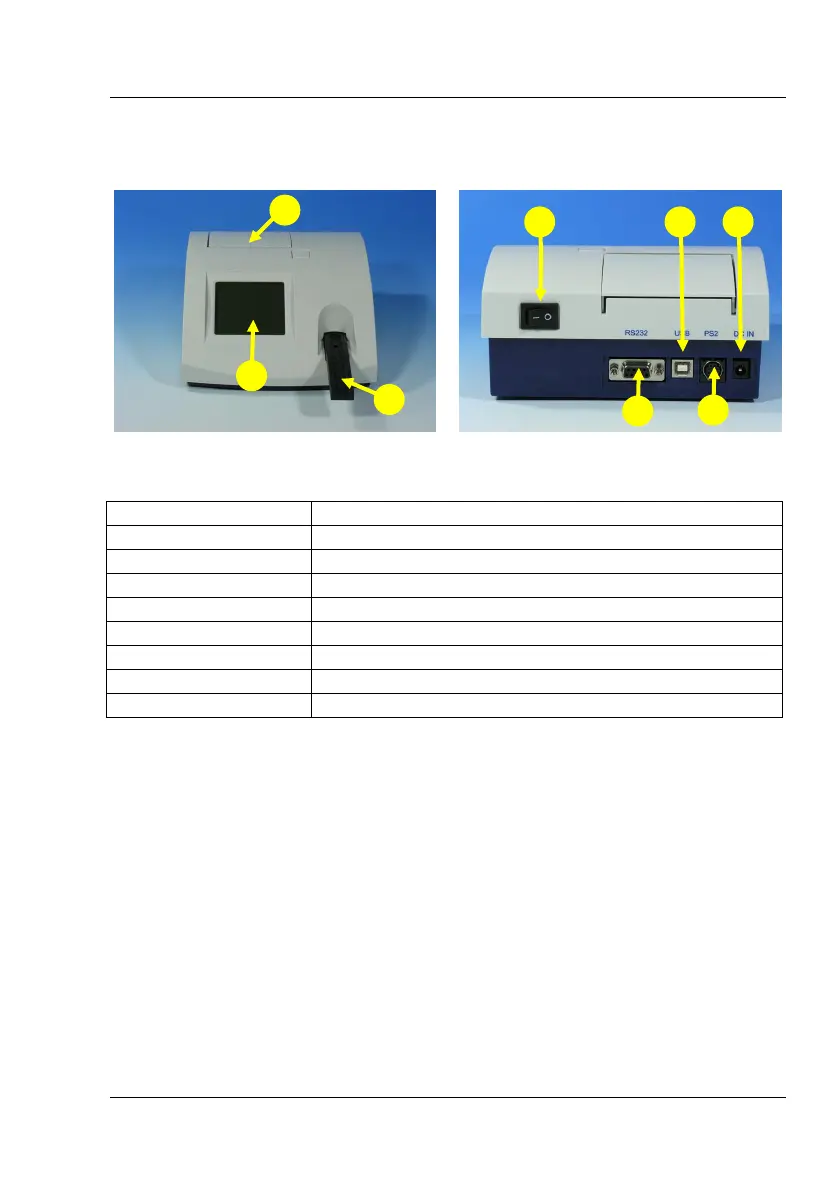

Pic. 3.2 : Front view
Pic. 3.3 : Backside view
Actuator
Function
1. Touch-Screen
Control of equipment functions
2. Test Stick Slide
Test stick retainer and autonomous start of analysis
3. Printer Flap
Opening the printer flap for paper replacement
4. Serial Interface
Connection of a computer
5. USB - Interface
Connection of a computer
6. PS/2 Interface
Connection of a keyboard or a bar code scanner
7. Mains Connection
Contact for the provided power pack
8. On/Off Switch (I/O)
Turning the equipment on and off
3.3 Setting up the instrument
Place the instrument on a hard, even surface where humidity and
temperature are fairly constant. Make sure that the instrument is allowed to
acclimate to room temperature prior to use.
Make sure that you
 Do not place the instrument near strong electromagnetic fields
 Do not place the instrument near heating plates, ovens or radiators
 Do not expose the instrument to strong light sources (i.e. direct
sunlight)
1
2
3
4
6
8
5
7
