HERO PLEASURE - Body Parts Removal; Center Compartment

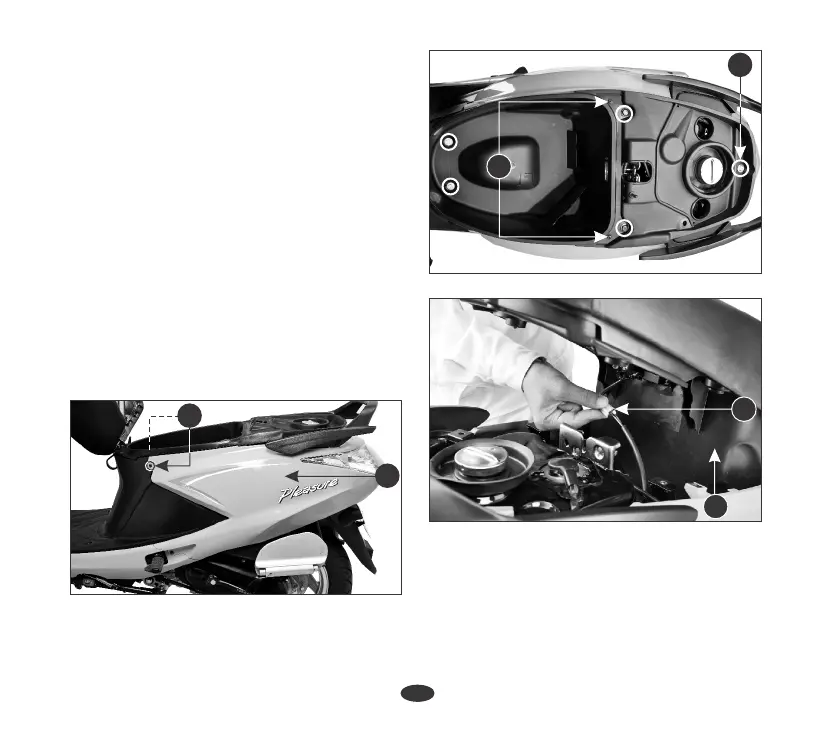

BODY PARTS REMOVAL
Removal
4. Remove the bolts (4).
1. Open the seat (page 26)
Center compartment
2. Remove screws/washers (1) from both
sides of the body cover (2).
3. Remove screws/washers (3) from the
center compartment.
5. Slightly lift up the center compartment
from the rear and disconnect the boot
lamp connector (5).
6. Remove the center compartment (6).
(1) Screws
(3) Screws
30
(4) Bolts
(2) Body cover
1
4
3
2
(5) Boot lamp connector (6) Center compartment
5
6
Installation can be done in the reverse
order of removal.
Park the scooter on its main stand when
servicing the scooter with the center
compartment removed.
NOTE
Installation
