(1) Screw driver
(2) Carburetor maintenance window
(3) Center compartment
58
Refer to the safety precautions (page 47).
If the arrow aligns with the reference mark
on full application of the brake, the brake
shoes must be replaced.
When the brake is applied, an arrow mark
(1) on the brake arm (2) moves towards a
reference mark (3) on the brake panel (4).
BRAKE SHOE WEAR
The front and integrated brakes are
equipped with brake wear indicators.
Visit your Authorised Hero MotoCorp
workshop for this service.
2
IDLE SPEED
Refer to the safety precautions (page 47).
The engine must be at normal operating
temperature for accurate idle speed
adjustment. Ten minutes of stop-and-go
riding is sufficient.

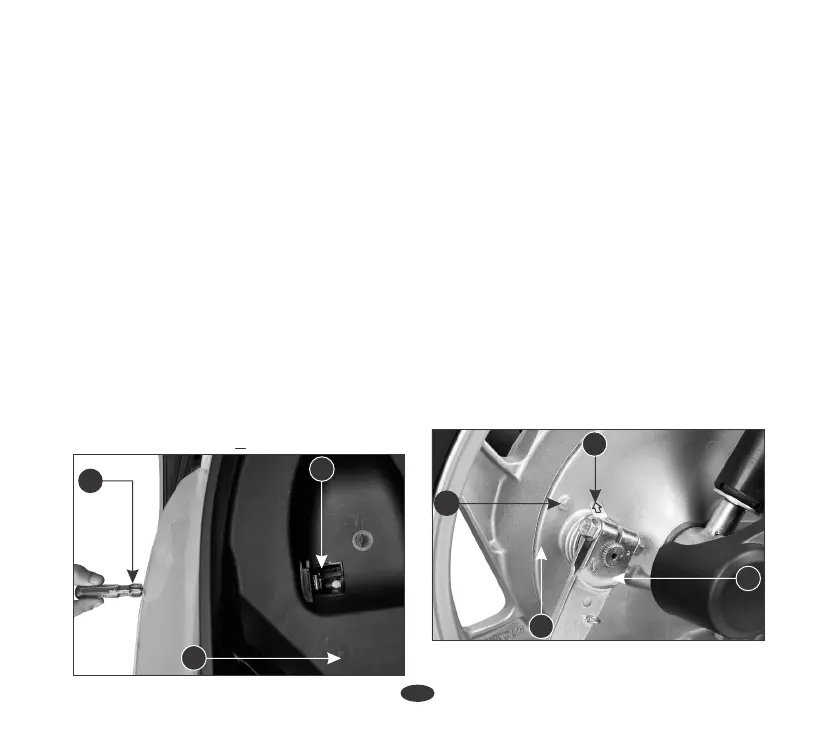

1. Warm up the engine and park the
scooter on its main stand.
2. Open the seat (page 26).
3. Adjust idle speed by adjusting the
throttle stop screw by inserting a
suitable screw driver (1) from the
opening provided in the floor panel as
shown.
4. Throttle stop screw is visible from the
carburetor maintenance window (2)
provided in the center compartment (3 ).
Idle speed: 1700 + 100 r/min
1
3
(3) Reference mark (4) Brake panel
(1) Arrow (2) Integrated brake arm
4
2
3
1
INTEGRATED BRAKE
