HERO PLEASURE - Fuse Replacement

61
Never use a fuse with a different rating
from that specified. It may lead to
serious damage to the electrical system
or a fire due to short circuit.
Battery gives off explosive gases. Keep
sparks, flames & cigarettes away.
Do not attempt to start or ride the scooter
without a charged battery, it can cause
fusing of the bulbs and permanent
damage to certain electrical components.
CAUTION
Battery installation
1. Reinstall in the reverse order of removal.
Be sure to connect the positive (+) terminal
first, then the negative (-) terminal.
2. Check the bolts and other fasteners are
secure.
2 3
1
2
3
1
5

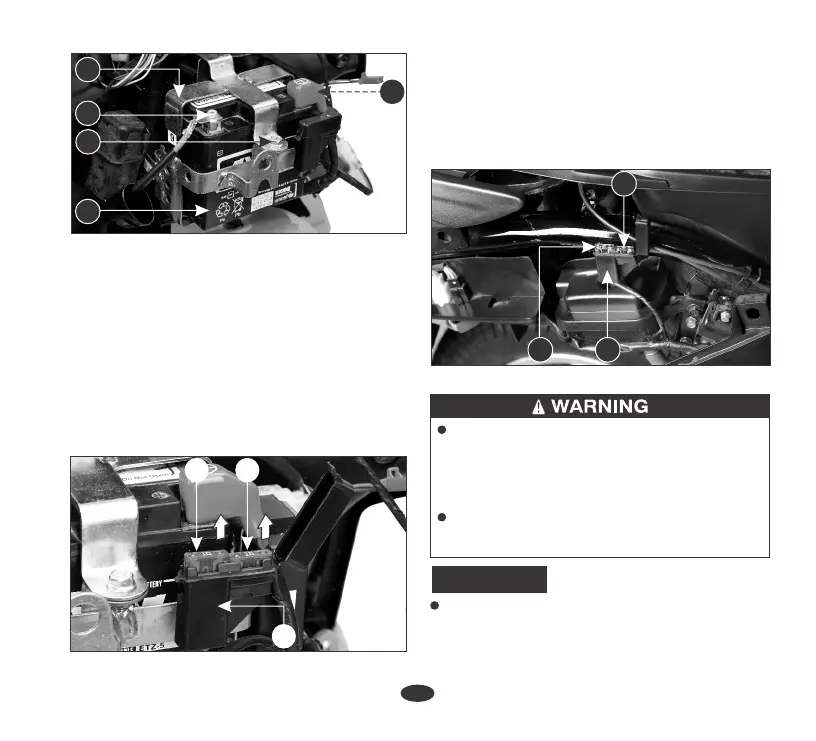

(1) Battery clamp (2) Bolt (3) Negative (-)
terminal (4) Positive (+) terminal (5) Battery
4
Fuse Box (4) : Location : Mounted on the frame
Fuse Type : Blade fuse
Fuse Box (1) : Location : Mounted on the
battery tray.
In circuit fuse (5): 2A, Spare fuse (6): 2A
In circuit fuse (2): 10A, Spare fuse (3): 10A
(1) Fuse box (2) In circuit fuse (3) Spare fuse
FUSE REPLACEMENT
(4) Fuse box (5) In circuit fuse (6) Spare fuse
5 4
6
