HERO XTREME 200S PROGRAMMED FI - Braking System - Front Brake Details; Front Master Cylinder;Reservoir Check; Front Brake Caliper and Pad Cleaning

58
Refer to the safety precautions on (page 41).
(a) Front brake
DoT-4/DoT-3.
Fluid level - Ensure that the brake fluid level
does not fall below “LWR” (lower) mark (2)
on master cylinder, when checked with the
master cylinder parallel to the ground. The
level decreases gradually due to piston
movement to compensate pad wear. If the
level decreases abruptly, check for the
leakages in the brake system and consult your
Authorised Hero MotoCorp workshop.
Brake fluid recommended:

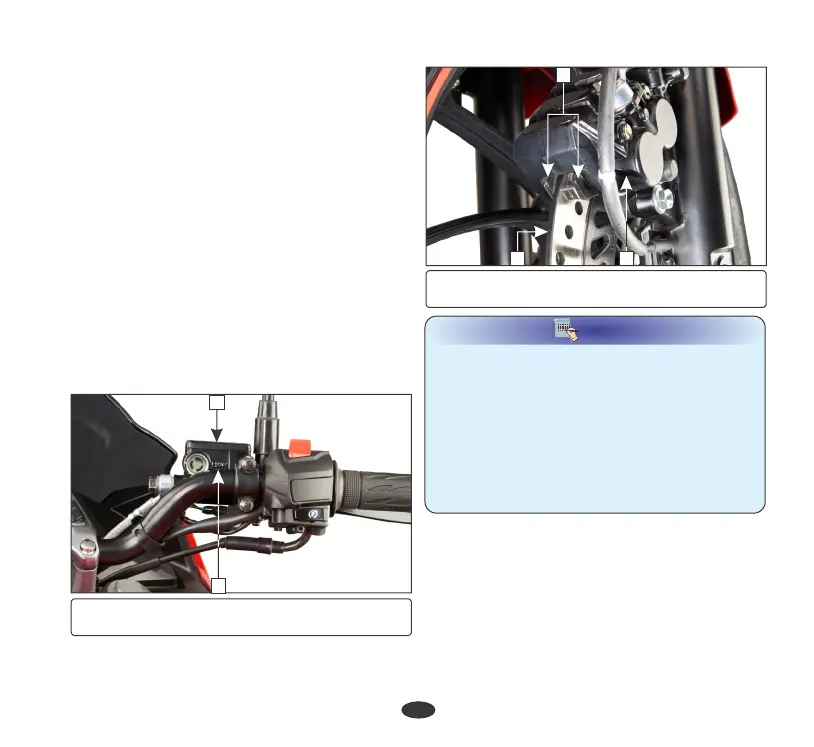

Master Cylinder/ (1)Reservoir
Location : Right handlebar.
BRAKES
(1) /Reservoir Master cylinder
(2) Lower mark
5
4
3
2
1
LWR
NOTE
• Always contact Hero your Authorised
MotoCorp workshop for refilling of master
cylinder/reservoir when necessary. Do not
mix DoT 3 and DoT 4 brake fluid.
• Clean the dirt and mud accumulation
between the front brake caliper (3), brake
pads (4) and the disc (5) by using a water jet.
• Always use recommended tyres (page 64)
for better braking performance.
(3) Front brake caliper (4) Brake pad
(5) Disc
(b) Rear brake
Location : Inside right side cover.
Reservoir (1)
DoT-4/DoT-3.
Brake fluid recommended :
Refer to the safety precautions on (page 41).
