WHEEL
Refer to the safety precautions on (page 41).

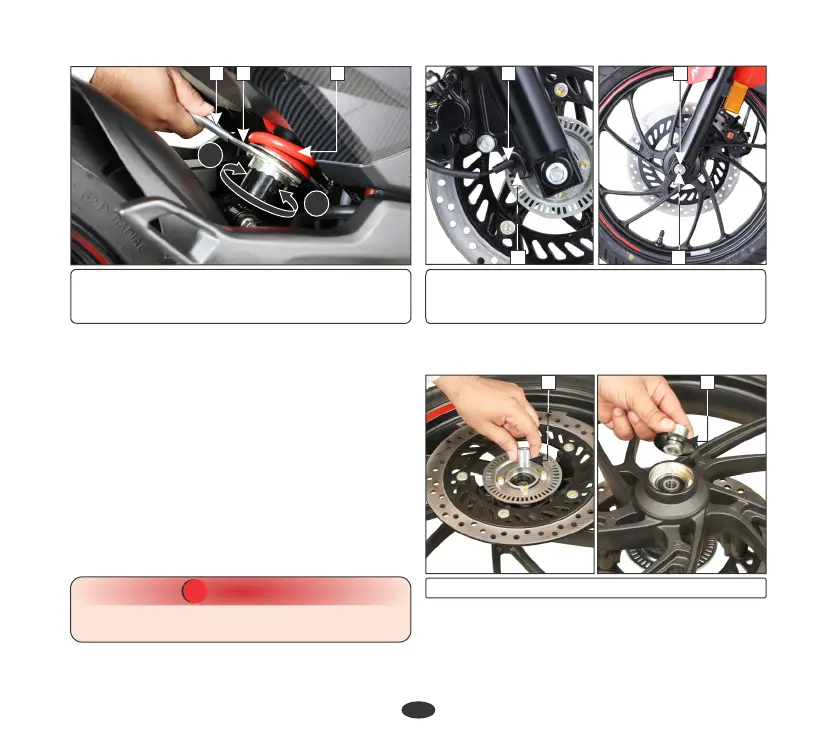

Removal
•
Remove the wheel speed sensor bolt (1)
from right fork leg and disconnect the cable
(2).
•
Support the vehicle securely on the main
stand and raise the front wheel off the
ground.
•
Remove the front axle nut (3), remove the
axle (4) and wheel.
(a) Front wheel
CAUTION
!!
Do not operate front brake lever when the
wheel is removed.
B
A
2
(1) Rear mono shock absorber (2) Pin spanner
(3) Pin spanner handle
(A) Softer (B) Stiffer
13
2
4
(1) Wheel speed sensor bolt
(2) Wheel speed sensor
(3) Front axle nut (4) Axle
1
3
•
Remove the side collars (5) from both sides
of the wheel.
(5) Side collars
55
Installation
•
Install the side collars (1) to both sides of
the wheel hub.
