HERO XTREME 200S PROGRAMMED FI - Wheel - Rear Wheel Service; Rear Wheel Removal Procedure; Rear Wheel Installation Procedure

62
TORQUE : 5.9 kgf-m
•
Tighten the front axle nut (4) to the
specified torque.
•
Install the wheel speed sensor cable (5).
•
Insert the disc (2) between the pads in the
caliper assembly (3). When installing the
wheel, carefully fit the brake disc between
the brake pads to avoid damage to the pads.
•
After installing the wheel apply the brake
several times and then check if the wheel
rotates freely. Recheck the wheel if the
brake drags or if the wheel does not rotate
freely.

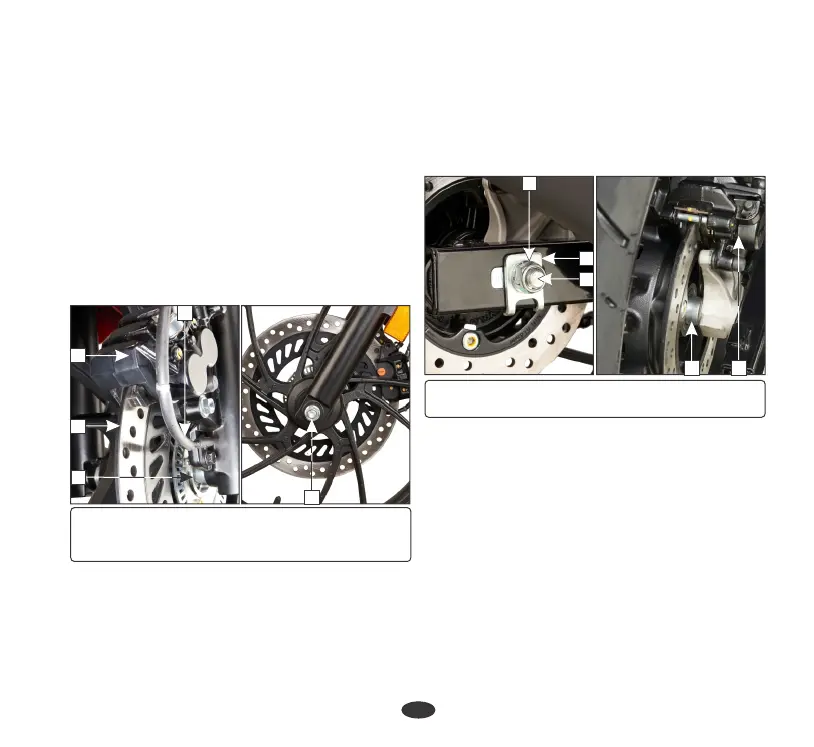

(1) Side collar (2) Disc
(5) Wheel speed sensor cable
(3) Caliper (4) Front axle nut
2
4
3
1
5
Removal
Refer safety precautions on (page 41).
•
Support the vehicle securely on the main
stand and raise the rear wheel off the
ground.
(b) Rear wheel
•
Move the caliper assembly (5) upwards.
•
Slide the wheel out from right side.
•
Remove the rear axle nut (1) and indicator
plate (2).
•
Remove the axle (3) and the right side
collar (4).
•
Install the side collar (1) to the right side of
the wheel hub.
•
Insert the disc (2) between the pads in the
caliper assembly. When installing the wheel,
carefully fit the brake disc between the brake
pads to avoid damage to the pads.
Installation
•
Insert the axle (5) from the left side through
the swingarm, wheel hub, collar and rear
caliper holder.
•
Align the rear caliper holder (3) with the
swingarm (4).
•
Position the rear wheel between the
swingarm.
4
(1) Rear axle nut (2) Indicator plate (3) Axle
(4) Side collar (5) Caliper assembly
1
2
5
3
