TORQUE : 6.8 kgf-m
•
Install the (6) and tighten the indicator plate
rear axle nut (7) to the specified torque.
•
Adjust the drive chain slack (page 54).
• Lubricate the side stand.
MAIN/SIDE STAND LUBRICATION
• Park the vehicle on the level surface.
• Check the main/side stand return spring for
damage or loss of tension.
• Check the main stand (1)/side stand (2)
for freedom of movement.
• Make sure the main/side stand is not bent.

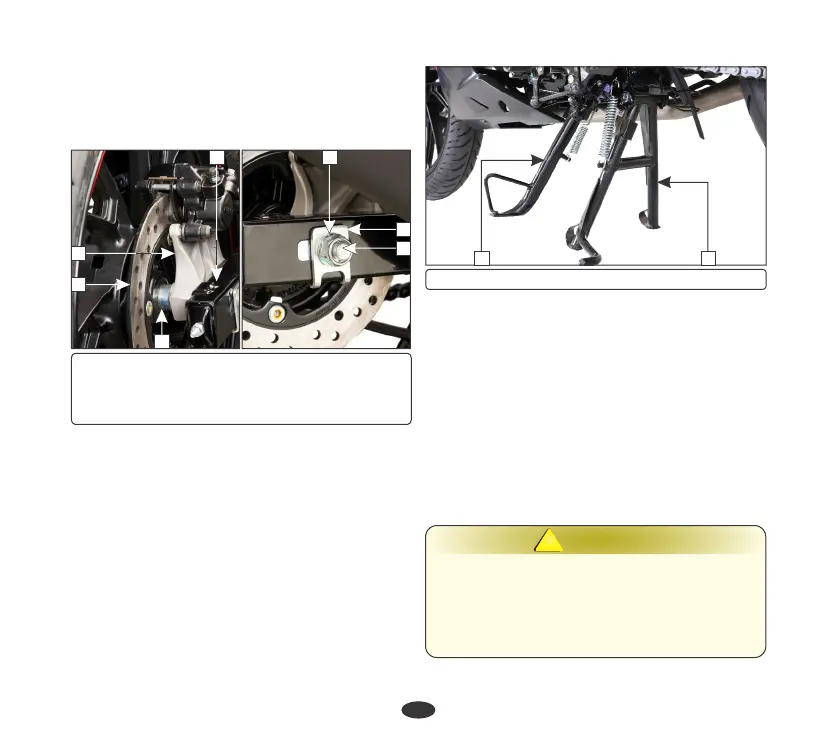

(1) Side collar (2) Disc
(3) Caliper holder (4) Swingarm
(5) Rear axle (6) Indicator plate
(7) Rear axle nut
7
6
1
2
3
5
(1) Main stand (2) Side stand
2 1
4
•
Using tyres that are excessively worn or
improperly inflated can cause a crash in
which you can be seriously hurt or killed.
•
Follow all instructions in this owner's
manual regarding tyres inflation and
maintenance.
WARNING
!!
TUBELESS TYRES
The following pages give more detailed
information on how and when to check the air
pressure, how to inspect your tyres for
damage, and what to do when your tyres need
to be repaired or replaced.
The tyres fitted on your vehicles are of
TUBELESS type.
To safely operate your vehicle, your tyres must
be of the proper type and size, in good
condition with adequate tread, and correctly
inflated for the load you are carrying.
