( ) Starter magnetic switch C
(1) Main fuse: 20A
69

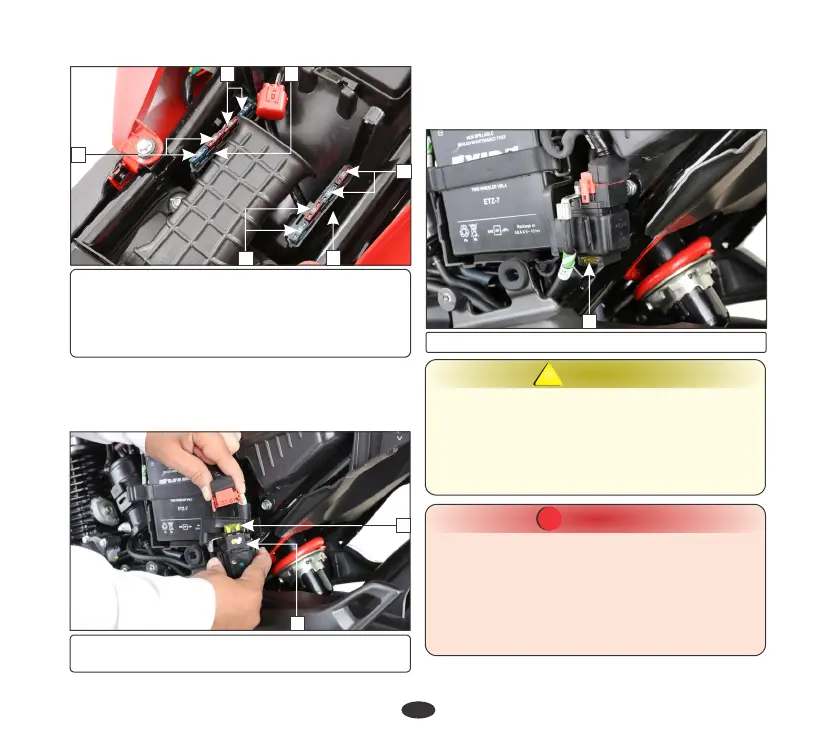

Starter magnetic switch (C)
Location : Inside left side cover, below the
starter magnetic switch.
(A) & (B) Fuse box
(1) Main fuse : 15A, 10A
(2) Spare fuse : 15A, 10A
(3) Main fuse : 15A, 10A
(4) Spare fuse : 15A, 10A
1
A
B
2
(2) Spare fuse: 20A
WARNING
!!
•
Battery gives off explosive gases. Keep
sparks, flames & cigarettes away.
•
Never use a fuse with a different rating from
that specified. It may lead to serious damage
to the electrical system or a fire due to short
circuit.
C
Fuse Type: Blade fuse
Main fuse (1) : 20A
Spare fuse (2) : 20A
CAUTION
!!
•
Do not attempt to start or ride the vehicle
without a charged battery, it can cause
fusing of the bulbs and permanent damage
to certain electrical components.
•
Turn the ignition switch "OFF" before
checking or replacing the fuse to prevent
accidental short-circuiting.
2
3
4
1
