iCLASS SE Reader Module Hardware Developer’s Guide, SE3200-902, Rev. C.1

February 2014 Page 38 of 52

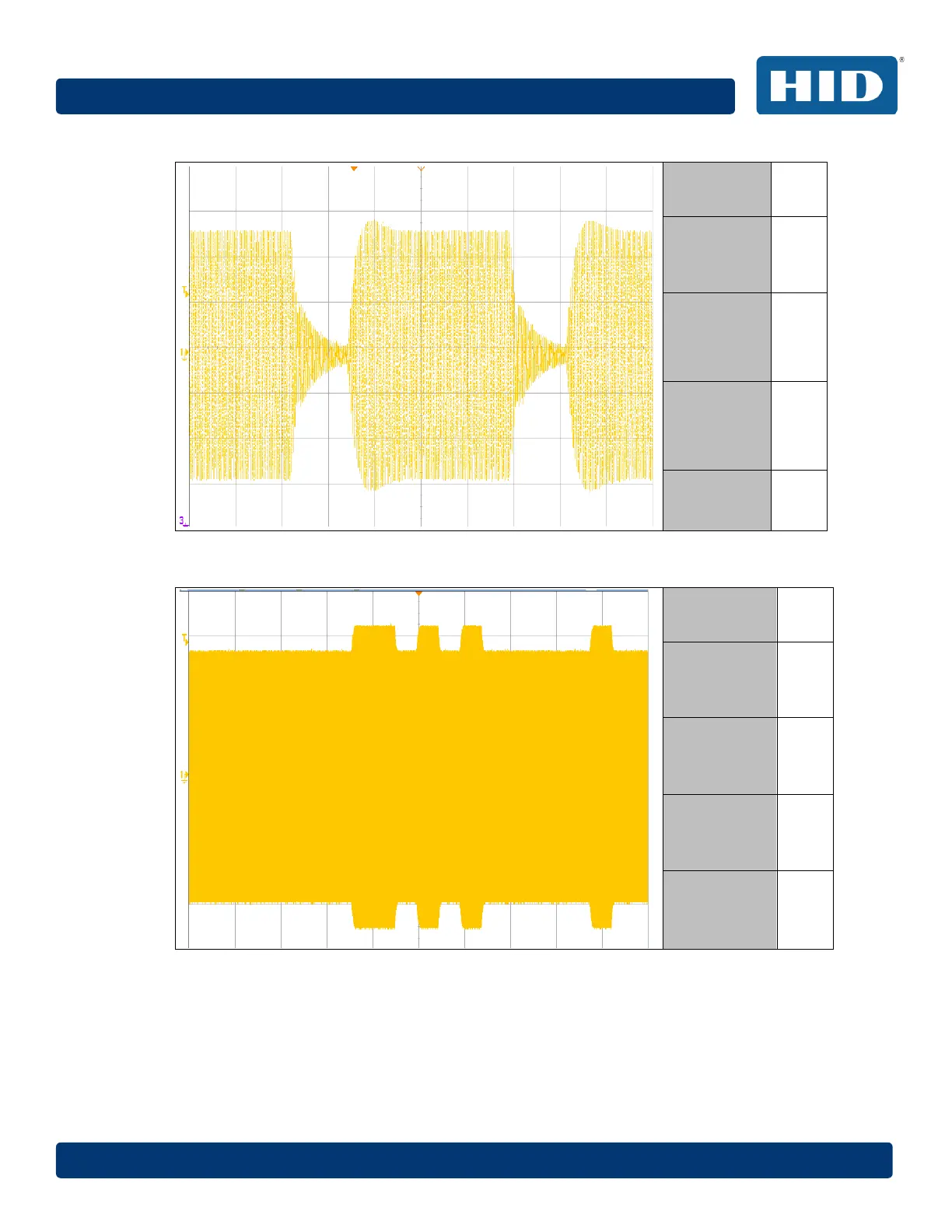

Table 20: ISO/IEC14443 Type A Modulation Waveforms

Pause Length

2.52µs

Low Time

520ns

Rise Time to

90%

325ns

Rise Time to

60%

98ns

Overshoot 8.53%

Table 21: ISO/IEC14443 Type B Modulation Waveforms

Rise Time

720ns

Fall Time

510ns

Modulation

Index

10.13%

Overshoot 1.2%

Undershoot 0.9%
