iCLASS SE Reader Module Hardware Developer’s Guide, SE3200-902, Rev. C.1

Page 45 of 52 February 2014

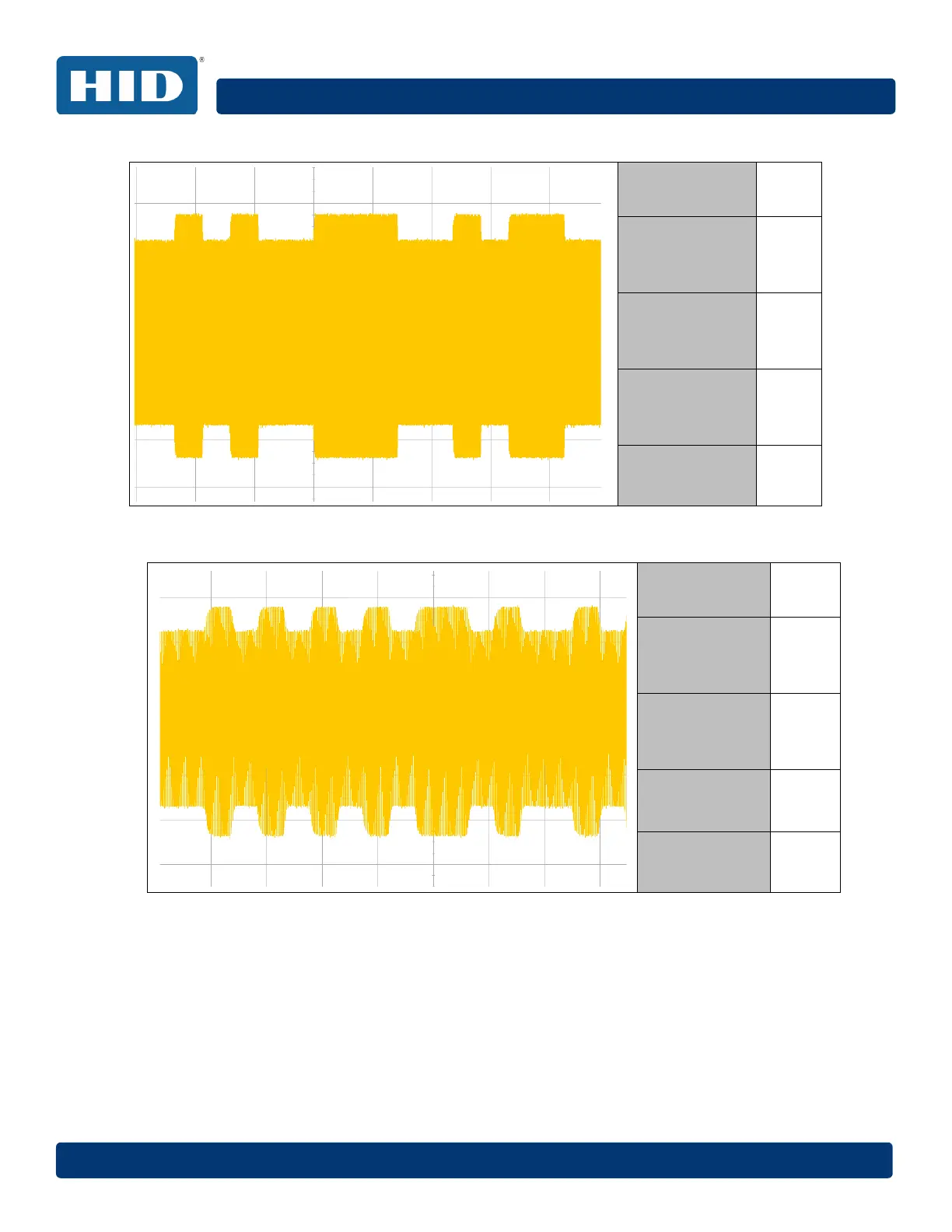

Table 28: ISO/IEC14443 Type B Modulation Waveforms

Rise Time

510ns

Fall Time

267ns

Modulation Index 13.15%

Overshoot 3.77%

Undershoot 6.90%

Table 29: FeliCa Waveforms

Rise Time

320ns

Fall Time

480ns

Modulation Index 12.23%

Overshoot 0.29 %

Undershoot 3.00%
